1D-to-2D Function Stream Plot for ggplot2 — geom_function_1d

These functions provide convenient ggplot2 layers for drawing streams generated by mapping a one-dimensional input (typically time) to two-dimensional coordinates. A user-defined function (fun) specifies the mapping by taking a numeric scalar (e.g. time) and returning a numeric vector of length 2 (representing \((x, y)\)). The underlying Stat_1d_2d evaluates fun over a time sequence spanning tlim in increments of dt, and ggvfields::GeomStream renders the resulting path.

Arguments

mapping: A set of aesthetic mappings created by ggplot2::aes(). Additional aesthetics such as color, size, linetype, and alpha can be defined. The default mapping sets color = after_stat(t).
data: A data frame containing the input data. In many cases, no data needs to be supplied.
position: Position adjustment, either as a string or the result of a call to a position adjustment function.
...: Other arguments passed on to ggplot2::layer().
na.rm: Logical. If FALSE (the default), missing values are removed with a warning.
show.legend: Logical. Should this layer be included in the legends?
inherit.aes: Logical. If FALSE, overrides the default aesthetics rather than combining with them.
fun: A function that defines the mapping from a scalar input (typically time) to a two-dimensional coordinate. It should take a numeric scalar and return a numeric vector of length 2 representing \((x, y)\). (Required)
tlim: Numeric vector of length 2. The range of the time sequence, given as c(t_start, t_end). Defaults to c(0, 10).
dt: Numeric. The time increment for evaluating fun. Defaults to 0.01.
args: List of additional arguments passed on to the function defined by fun.
tail_point: Logical. If TRUE, a point is drawn at the tail (starting position) of the stream.
arrow: A grid::arrow() specification to add arrowheads to the stream. Defaults to NULL (no arrowhead). Pass grid::arrow() to add one.
stat: The statistical transformation to use on the data for this layer. Defaults to Stat_1d_2d.

Value

A ggplot2 layer that computes and plots a stream by evaluating a one-dimensional function over a time sequence.

Details

In many cases these layers are useful for visualizing dynamic systems or flows where a one-dimensional parameter (often time) drives movement in two-dimensional space.

Examples

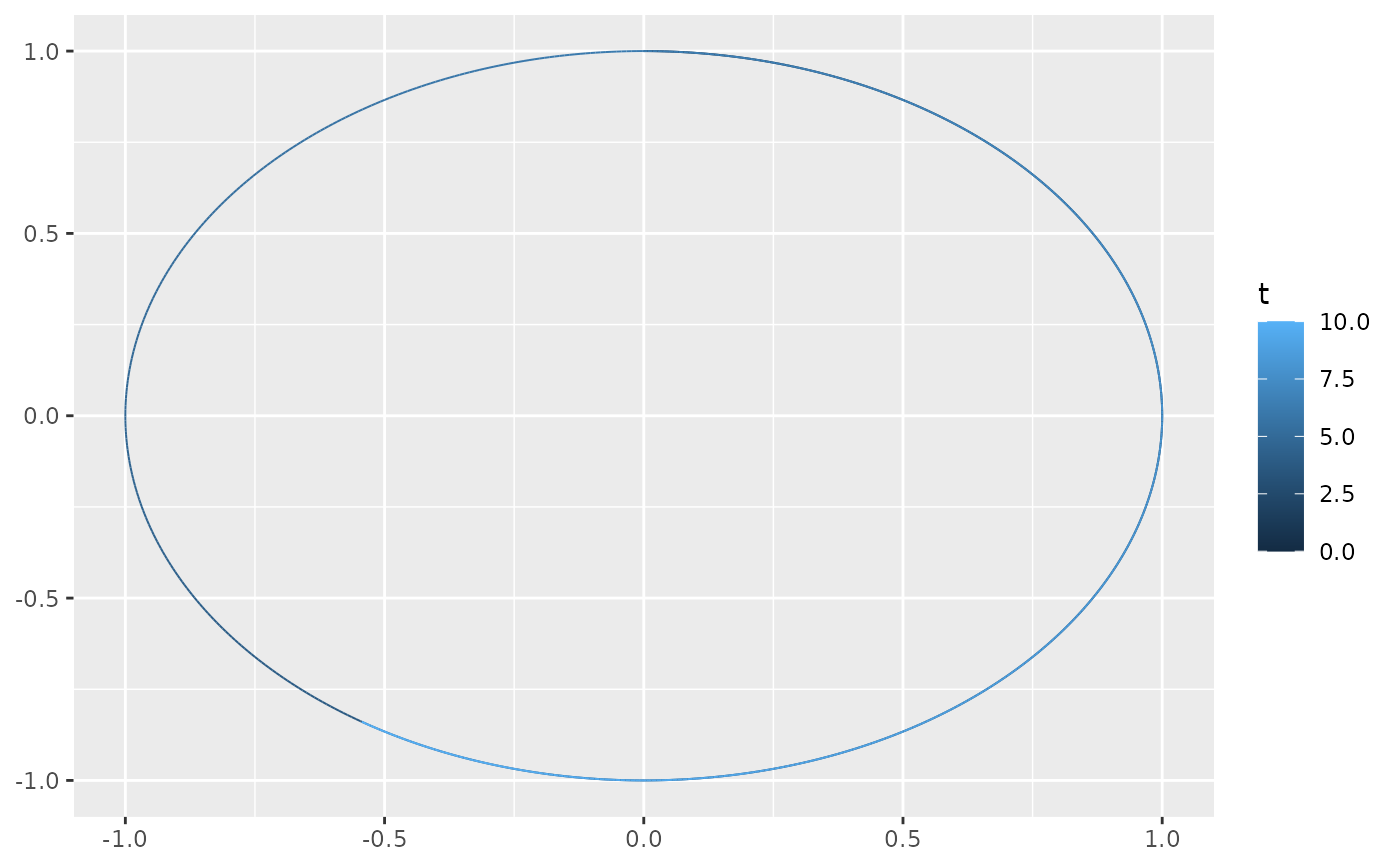

f <- function(t) {
  c(sin(t), cos(t))
}

ggplot() + geom_function_1d_2d(fun = f)


f <- function(t) {
  c(sin(t), t * cos(t))
}

ggplot() +
  geom_function_1d_2d(fun = f, tlim = c(0, 20), tail_point = TRUE)

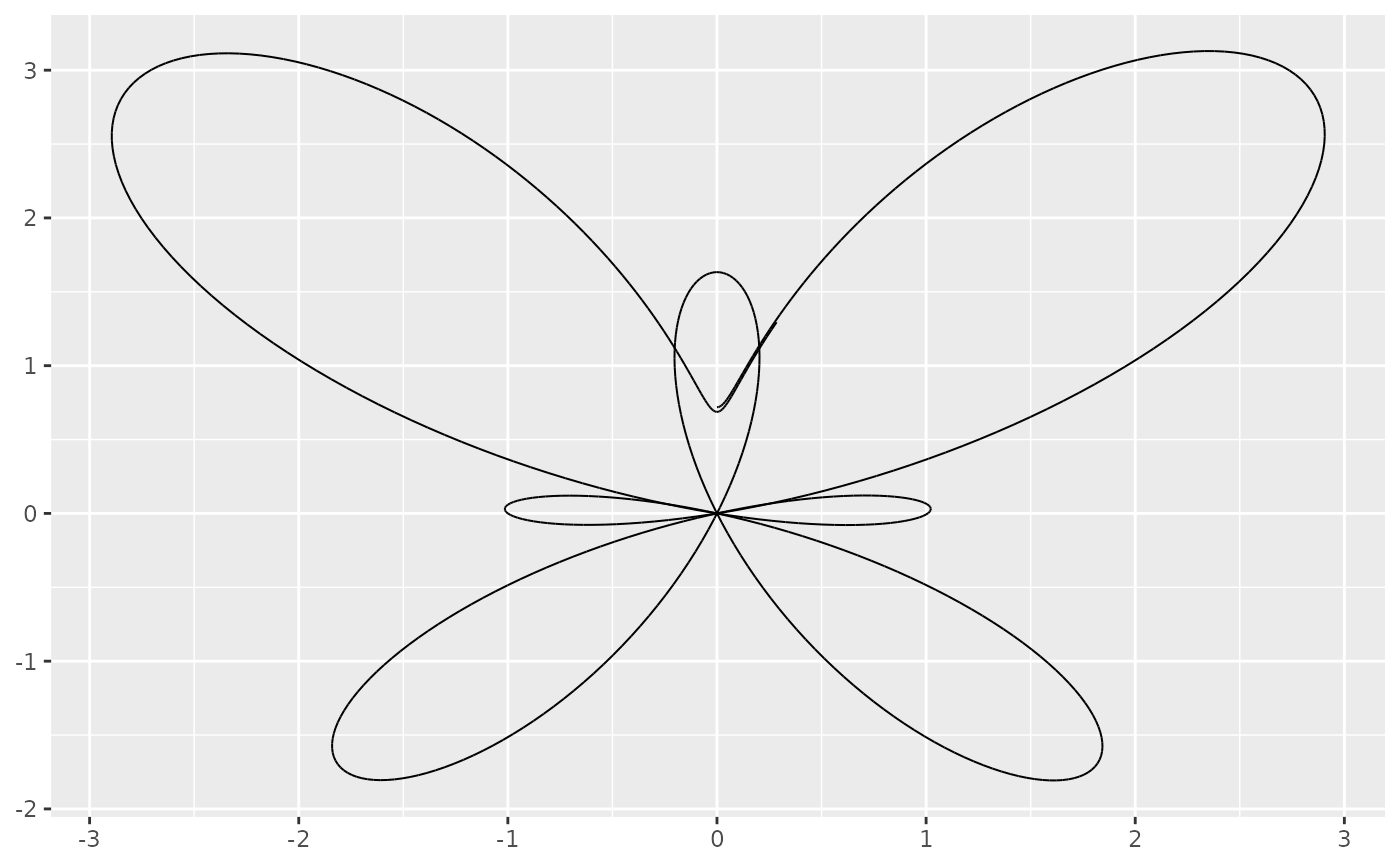

f <- function(t) {
  x <- sin(t) * (exp(cos(t)) - 2 * cos(4 * t) - (sin(t / 12))^5)
  y <- cos(t) * (exp(cos(t)) - 2 * cos(4 * t) - (sin(t / 12))^5)
  c(x, y)
}

ggplot() +
  geom_function_1d_2d(fun = f, tlim = c(0, 6.5), arrow = NULL, color = "black")

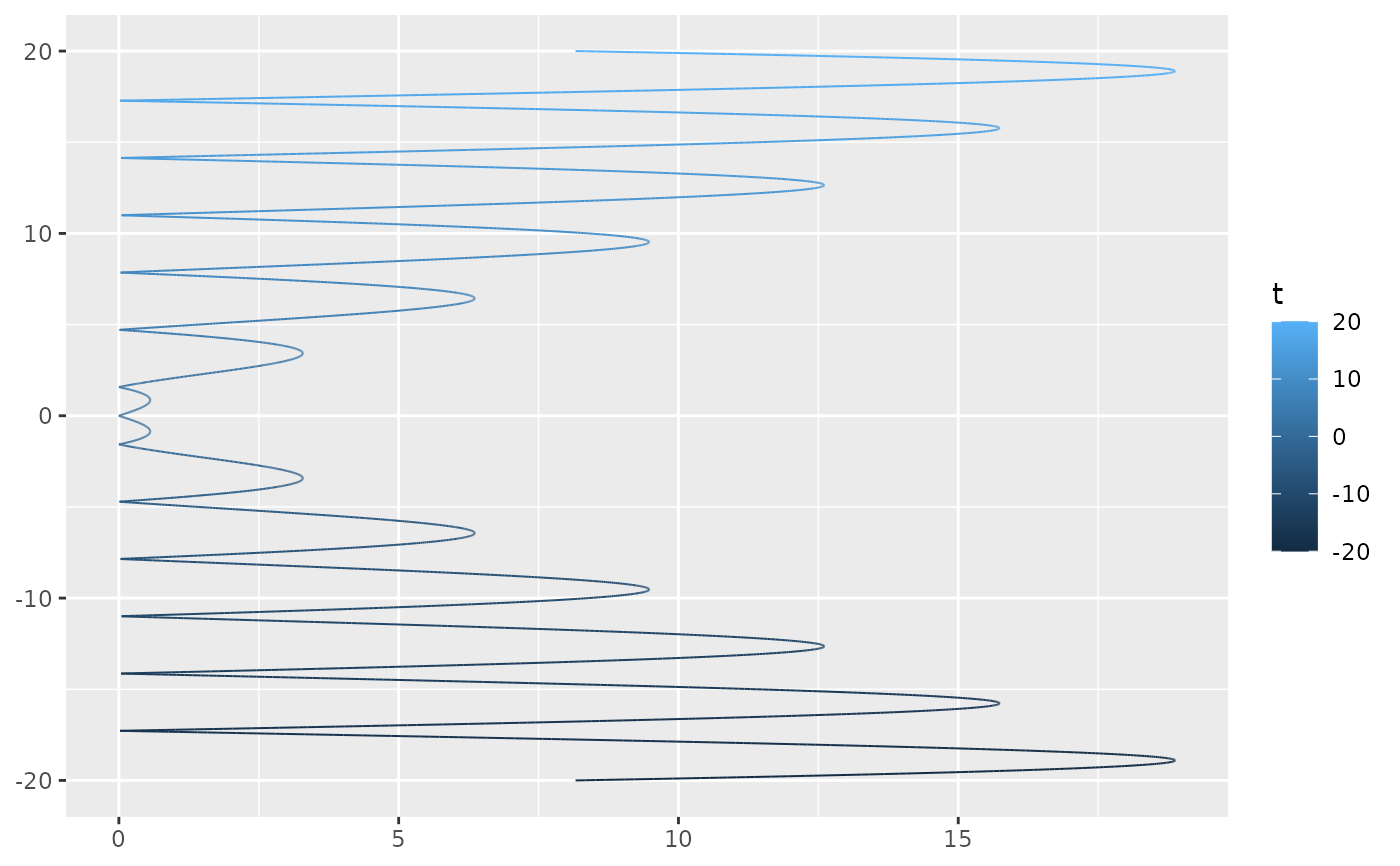

f <- function(t)  c(abs(cos(t)*t), t)

ggplot() + geom_function_1d_2d(fun = f, tlim = c(-20, 20))

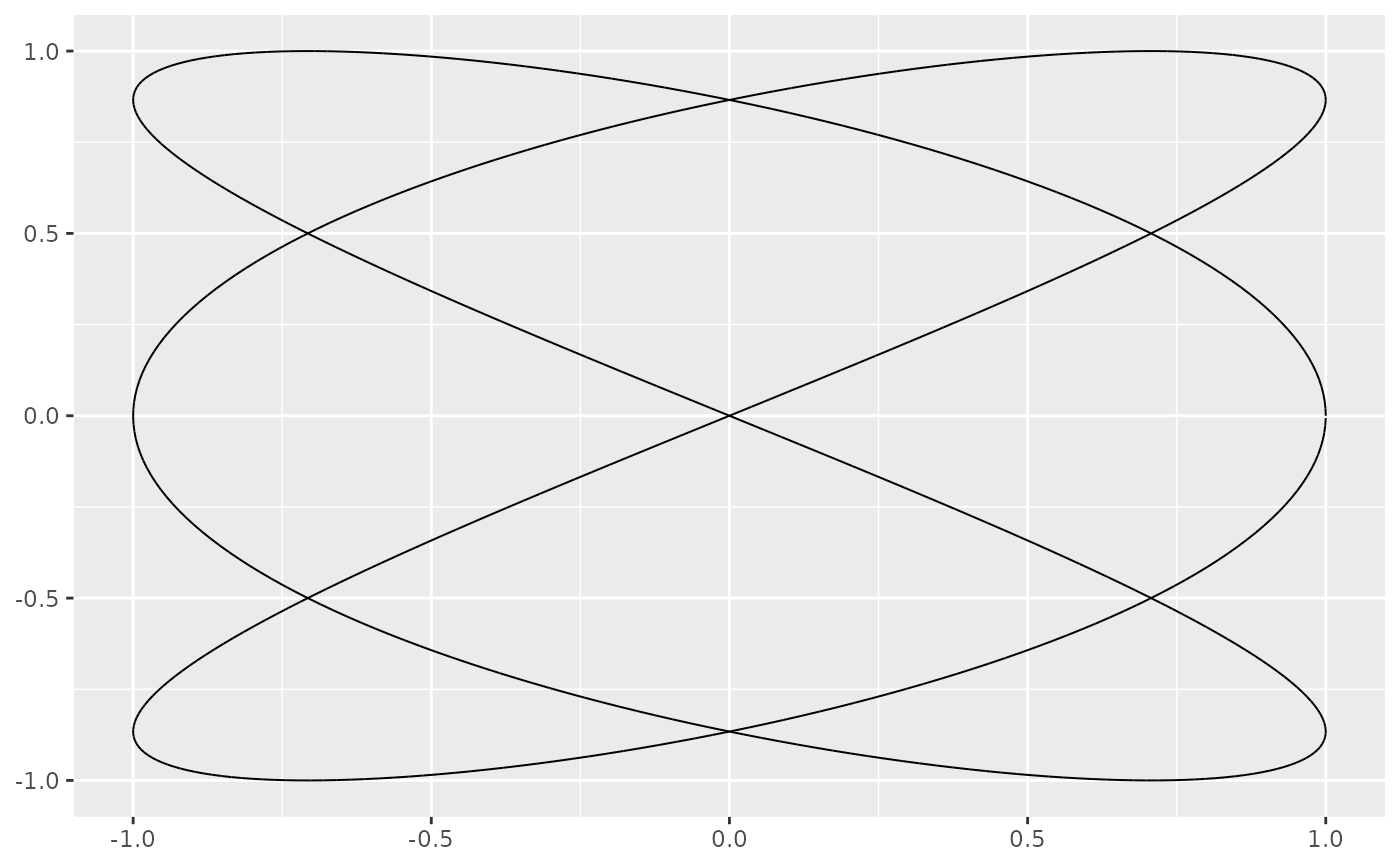

# Lissajous curve
lissajous <- function(t, A = 1, B = 1, a = 3, b = 2, delta = pi/2) {
  c(A * sin(a * t + delta), B * sin(b * t))
}

ggplot() +
  geom_function_1d_2d(
    fun = lissajous, tlim = c(0, 2 * pi), color = "black", arrow = NULL,
    args = list(A = 1, B = 1, a = 3, b = 2, delta = pi/2)
  )


# Variations on Lissajous curves

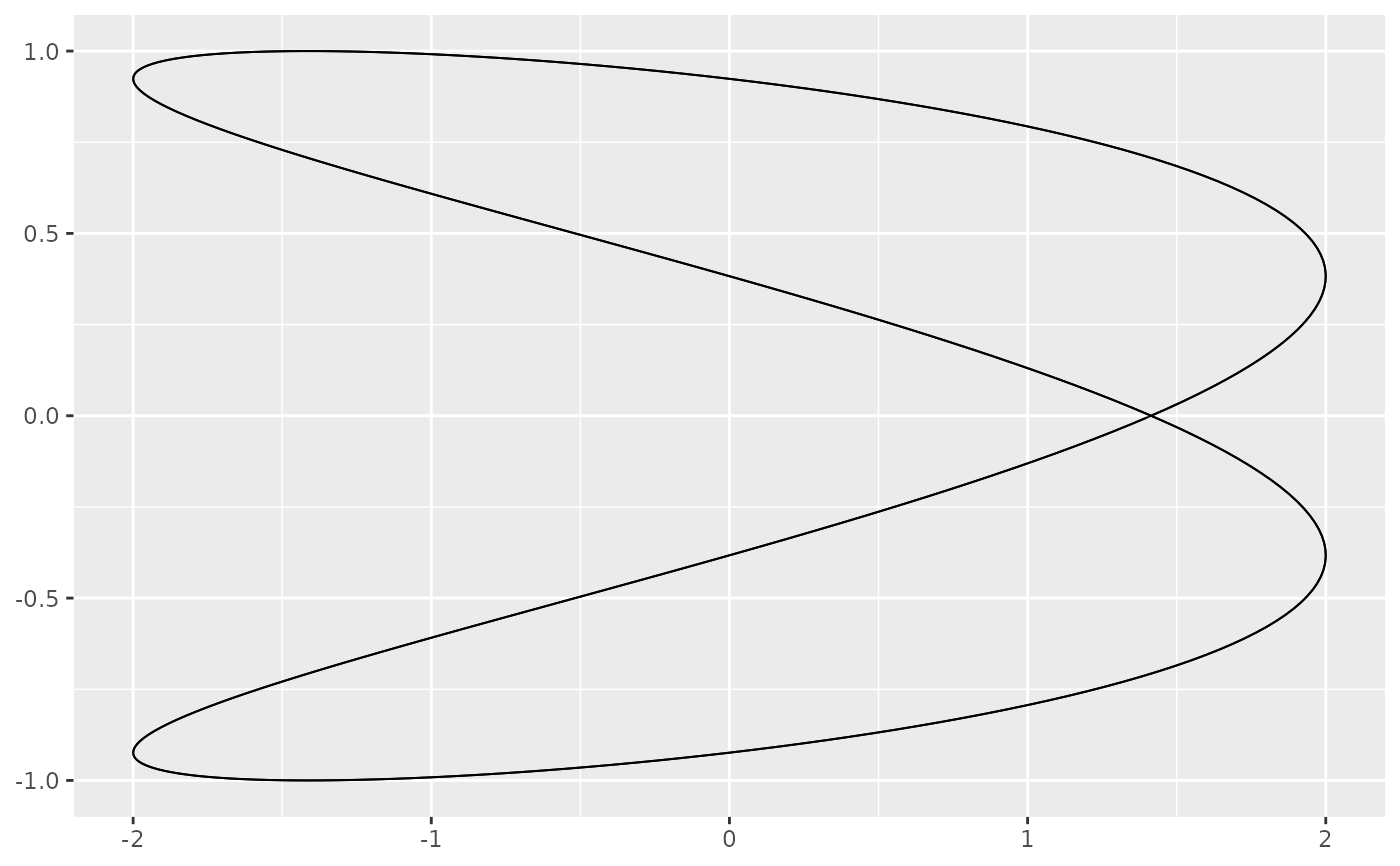

ggplot() +
  geom_function_1d_2d(
    fun = lissajous, tlim = c(0, 2 * pi), color = "black", arrow = NULL,
    args = list(A = 2, B = 1, a = 4, b = 2, delta = pi/4)
  )

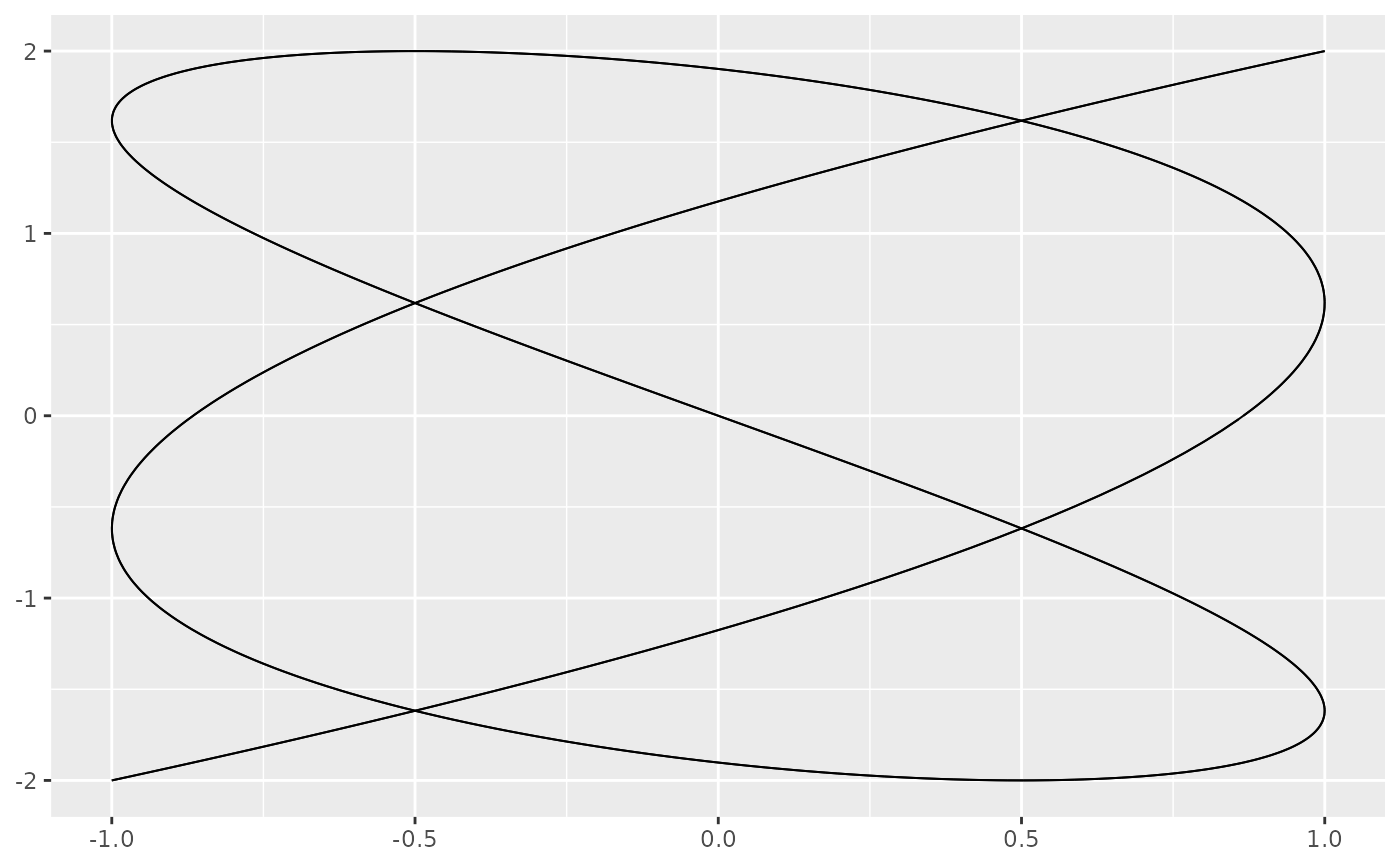

ggplot() +
  geom_function_1d_2d(
    fun = lissajous, tlim = c(0, 2 * pi), color = "black", arrow = NULL,
    args = list(A = 1, B = 2, a = 5, b = 3, delta = pi/3)
  )

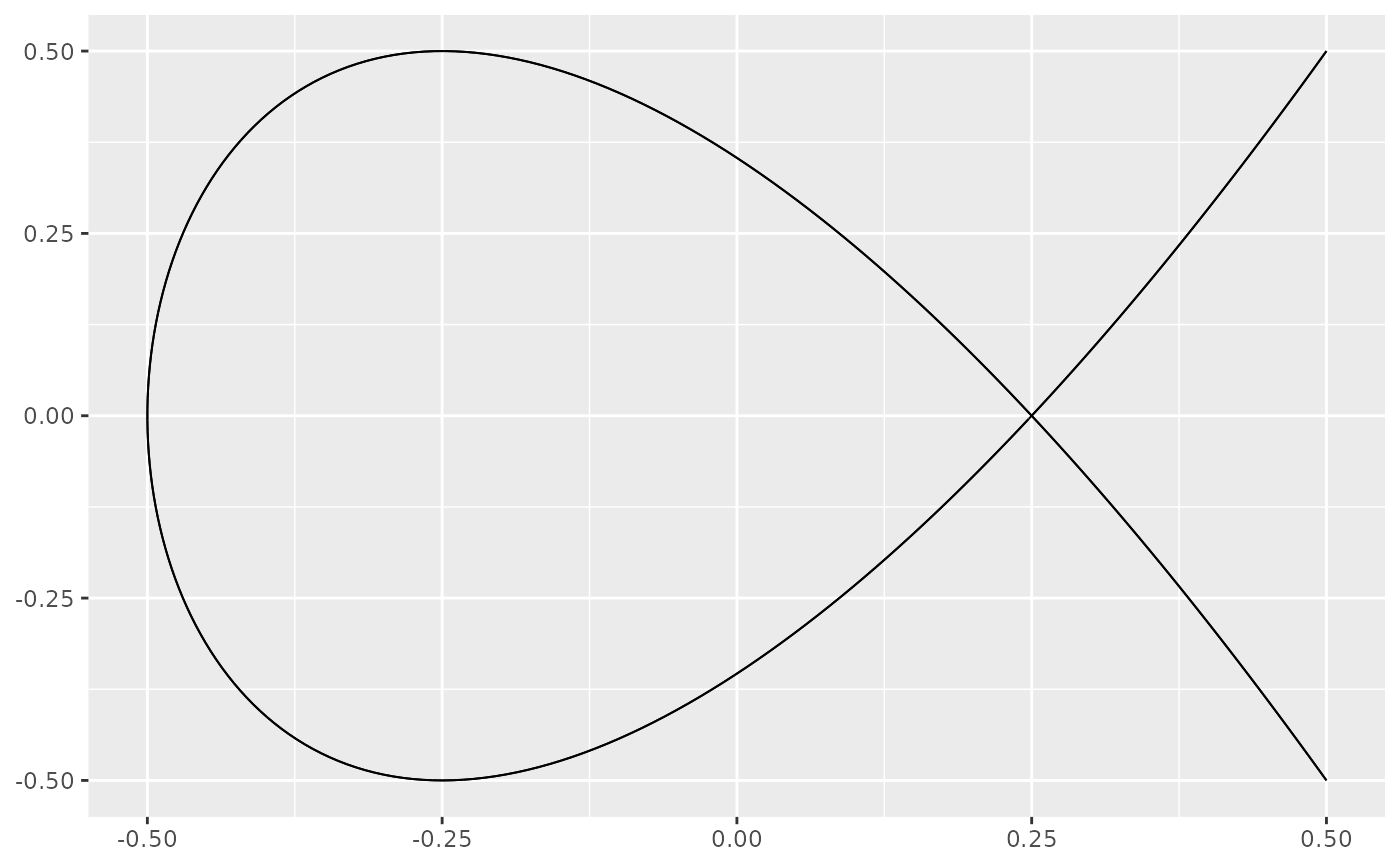

ggplot() +
  geom_function_1d_2d(
    fun = lissajous, tlim = c(0, 2 * pi), color = "black", arrow = NULL,
    args = list(A = 0.5, B = 0.5, a = 2, b = 3, delta = pi/6)
  )

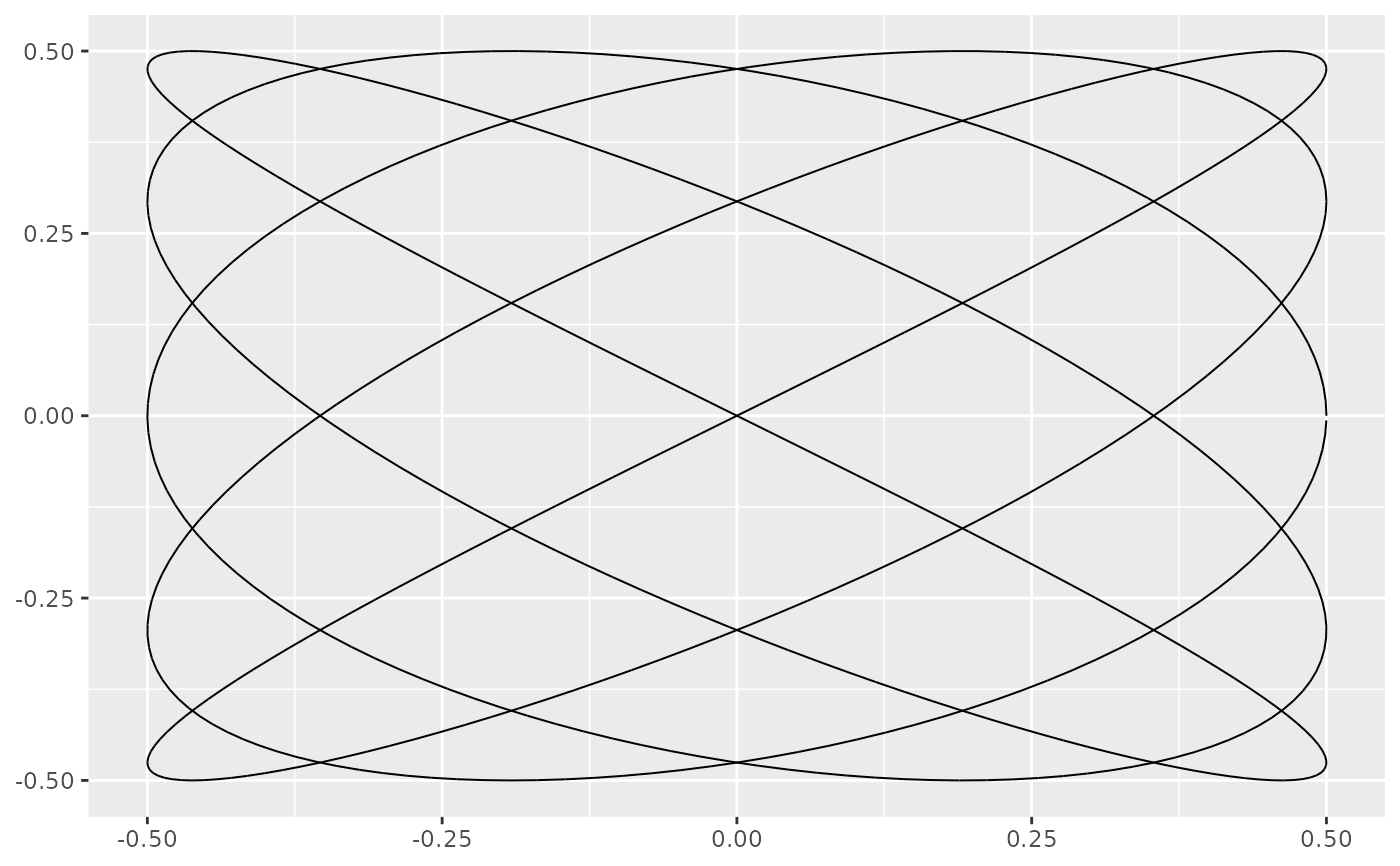

ggplot() +
  geom_function_1d_2d(
    fun = lissajous, tlim = c(0, 2 * pi), color = "black", arrow = NULL,
    args = list(A = 0.5, B = 0.5, a = 5, b = 4, delta = pi/2)
  )

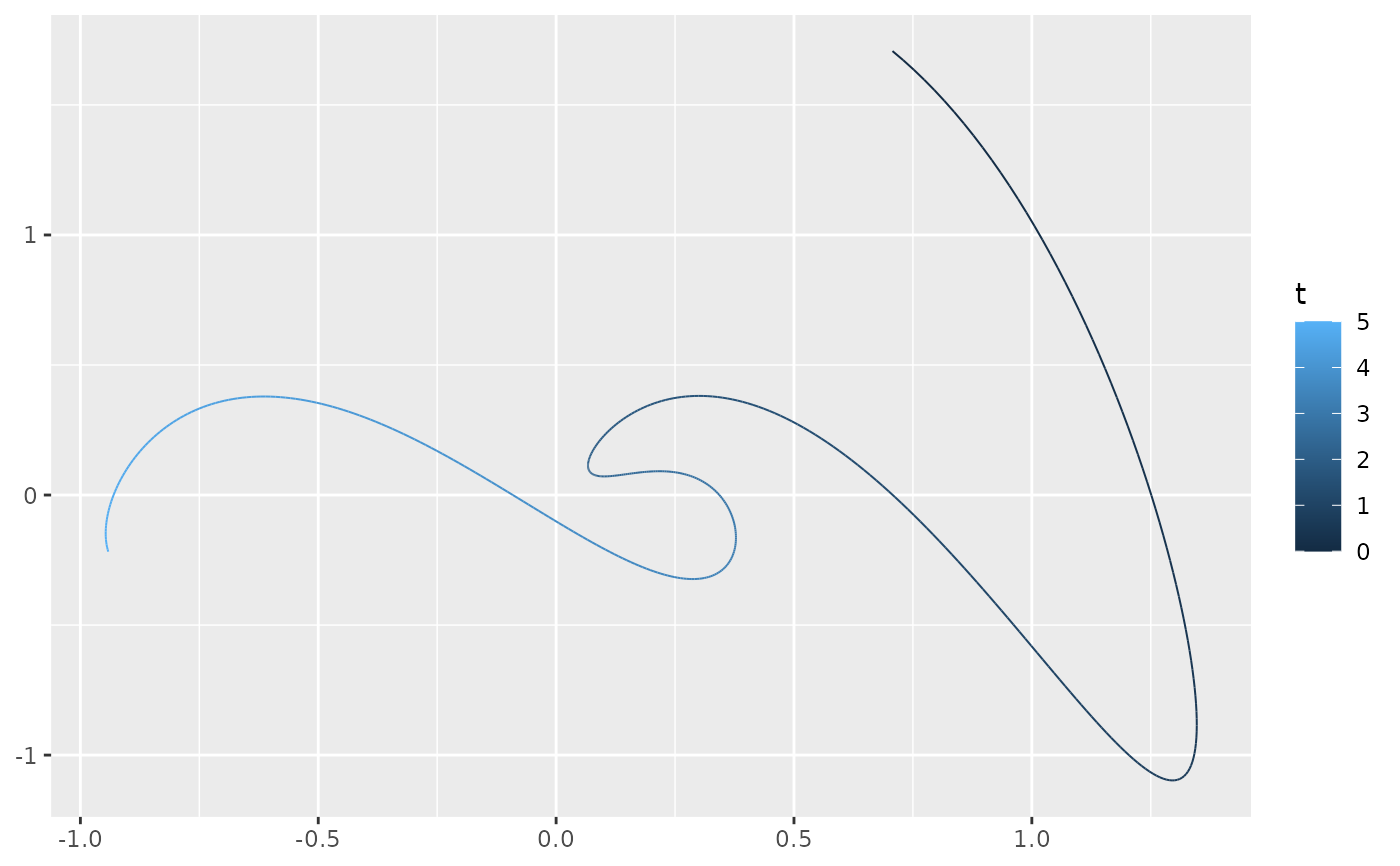

# Harmonic cuves

f <- function(t,
  A1 = 1, A2 = 1, A3 = 1, A4 = 1,
  f1 = 1, f2 = 2, f3 = 3, f4 = 4,
  p1 = 0, p2 = pi/4, p3 = pi/2, p4 = 3*pi/4,
  d1 = 0.1, d2 = 0.2, d3 = 0.3, d4 = 0.4) {
    x <- A1 * sin(t * f1 + p1) * exp(-d1 * t) + A2 * sin(t * f2 + p2) * exp(-d2 * t)
    y <- A3 * sin(t * f3 + p3) * exp(-d3 * t) + A4 * sin(t * f4 + p4) * exp(-d4 * t)
    c(x, y)
}

ggplot() + geom_function_1d_2d(fun = f, tlim = c(0, 5))
