Create a 2D Function Visualization Layer of the Norm of a Vector Field

geom_function_2d_1d adds a layer to visualize 2D functions or vector fields in a ggplot2 plot.

Usage

geom_function_2d_1d(
  mapping = NULL,
  data = NULL,
  stat = StatFunction2d,
  geom = GeomFunction2d,
  ...,
  position = "identity",
  fun = NULL,
  xlim = NULL,
  ylim = NULL,
  n = NULL,
  type = "raster",
  bins = NULL,
  binwidth = NULL,
  breaks = NULL,
  show.legend = TRUE,
  inherit.aes = TRUE
)

stat_function_2d_1d(
  mapping = NULL,
  data = NULL,
  geom = GeomFunction2d,
  position = "identity",
  ...,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE,
  fun = NULL,
  xlim = c(-1, 1),
  ylim = c(-1, 1),
  n = 50
)

StatFunction2d

GeomFunction2d

StatFunction2dContour

StatFunction2dContourFilled

Format

An object of class StatFunction2d (inherits from Stat, ggproto, gg) of length 3.

An object of class GeomFunction2d (inherits from GeomRaster, Geom, ggproto, gg) of length 2.

An object of class StatFunction2dContour (inherits from StatContour, Stat, ggproto, gg) of length 5.

An object of class StatFunction2dContourFilled (inherits from StatContourFilled, Stat, ggproto, gg) of length 5.

Arguments

mapping: Aesthetic mappings, created using aes(). If NULL, defaults are used.
data: Optional data frame to override the default data source.
stat: Statistical transformation to use. Defaults to StatFunction2d.
geom: Geom used for rendering. Defaults to GeomFunction2d.
...: Other arguments passed to the layer, such as additional parameters.
position: Position adjustment for the layer. Defaults to "identity".
fun: A function that takes a matrix of x, y values and returns a matrix of dx, dy values.
xlim: Numeric vector of length 2 specifying the x-range of the grid. Required if fun is provided.
ylim: Numeric vector of length 2 specifying the y-range of the grid. Required if fun is provided.
n: Number of points in the grid along each axis. Defaults to 50 in stat_function_2d_1d.
type: Character. Type of visualization: "raster" (default), "contour", or "contour_filled".
bins: Number of contour bins. Only used when type is "contour" or "contour_filled".
binwidth: Width of contour bins. Only used when type is "contour" or "contour_filled".
breaks: Numeric vector of specific contour break values. Only used when type is "contour" or "contour_filled".
show.legend: Logical. Should this layer be included in the legends? NA includes if aesthetics are mapped.
inherit.aes: If FALSE, overrides default aesthetics rather than combining them.
na.rm: Logical. Should missing values be removed? Defaults to FALSE.

Value

A ggplot2 layer.

Examples

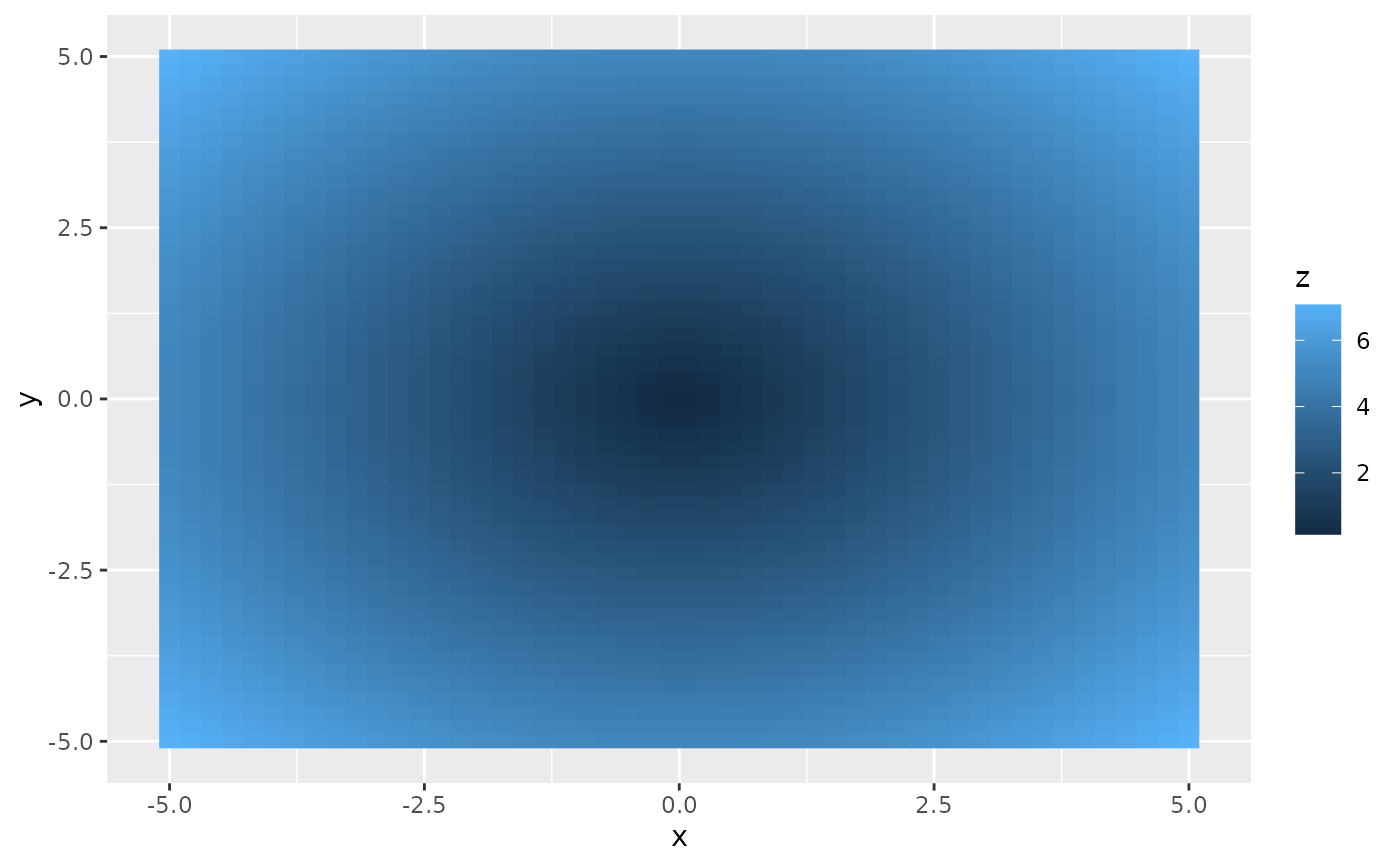

# Function that calculates the norm
f <- function(v) {
  x <- v[1]
  y <- v[2]
  c(sqrt(x^2 + y^2))
}

ggplot() +
  geom_function_2d_1d(fun = f, xlim = c(-5, 5), ylim = c(-5, 5))

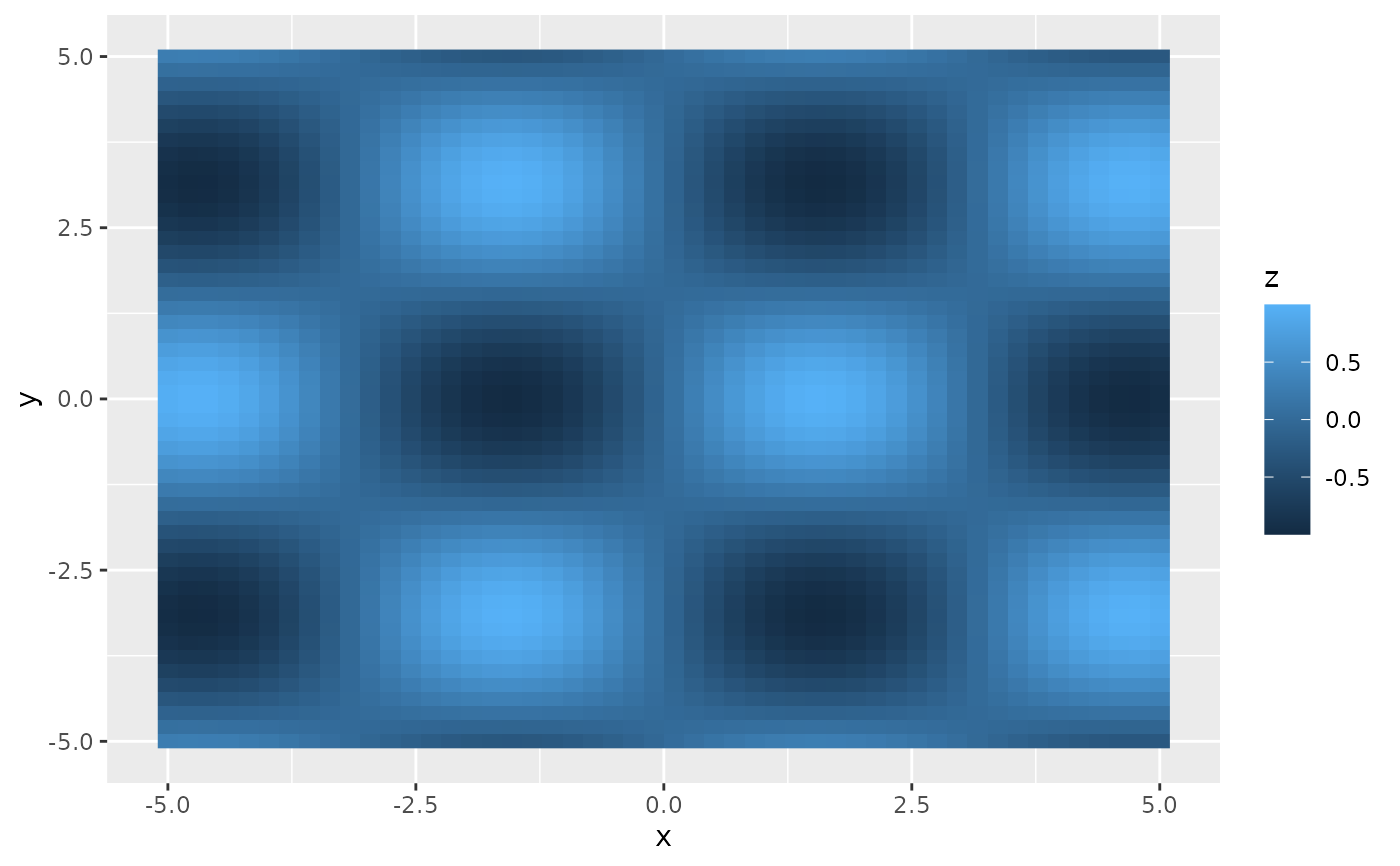

# Sinusoidal combination of sine and cosine
f_sin_cos <- function(v) {
  x <- v[1]
  y <- v[2]
  sin(x) * cos(y)
}

ggplot() +
  geom_function_2d_1d(fun = f_sin_cos, xlim = c(-5, 5), ylim = c(-5, 5))

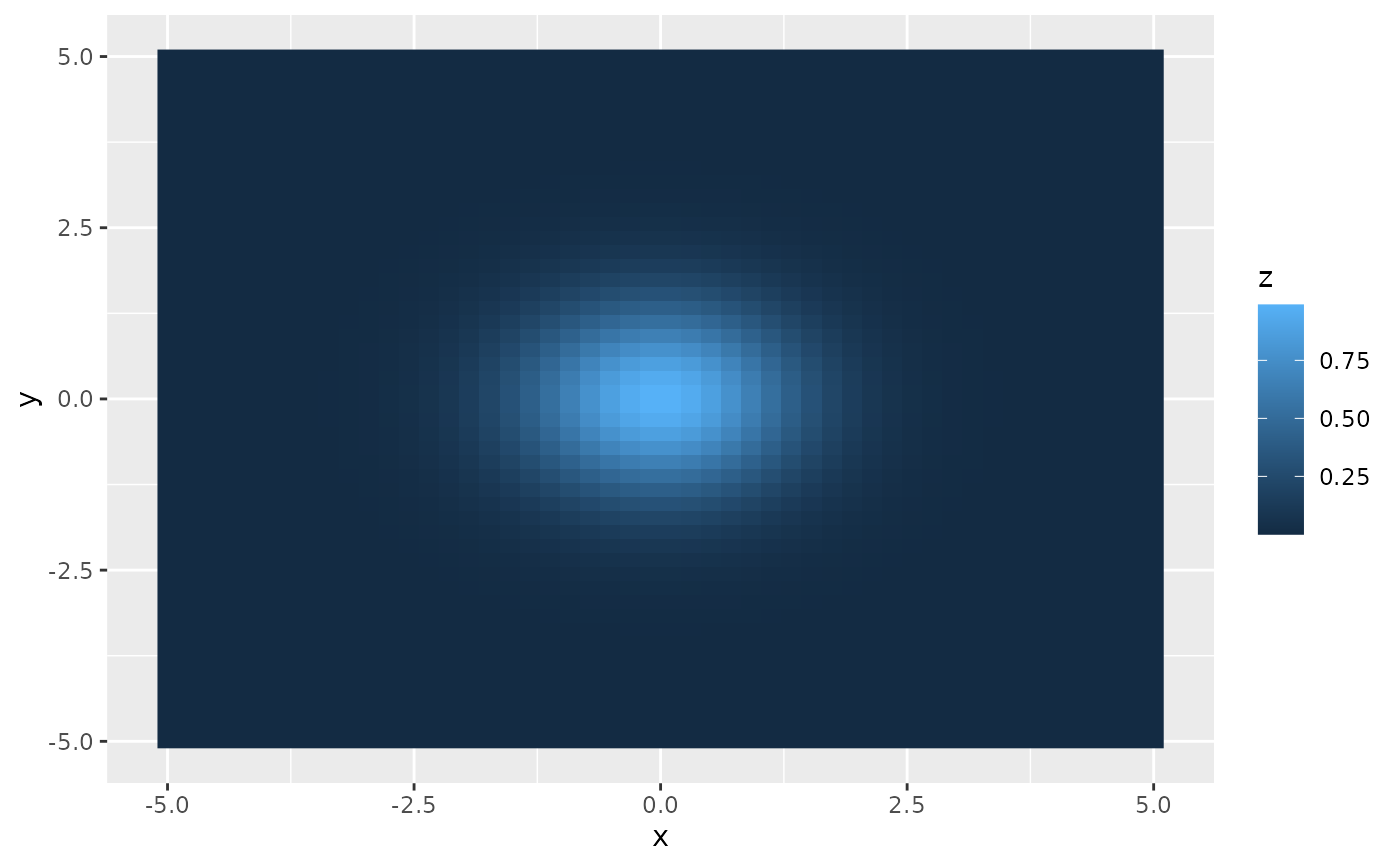

# Gaussian bump function
f_gaussian <- function(v) {
  x <- v[1]
  y <- v[2]
  exp(-(x^2 + y^2) / 2)
}

ggplot() +
  geom_function_2d_1d(fun = f_gaussian, xlim = c(-5, 5), ylim = c(-5, 5))


# Radial sine wave function
f_radial_wave <- function(v) {
  x <- v[1]
  y <- v[2]
  r <- sqrt(x^2 + y^2)
  sin(r)
}

# Some functions need more resolution for clarity
ggplot() +
  geom_function_2d_1d(fun = f_radial_wave, xlim = c(-50, 50), ylim = c(-50, 50), n = 100)

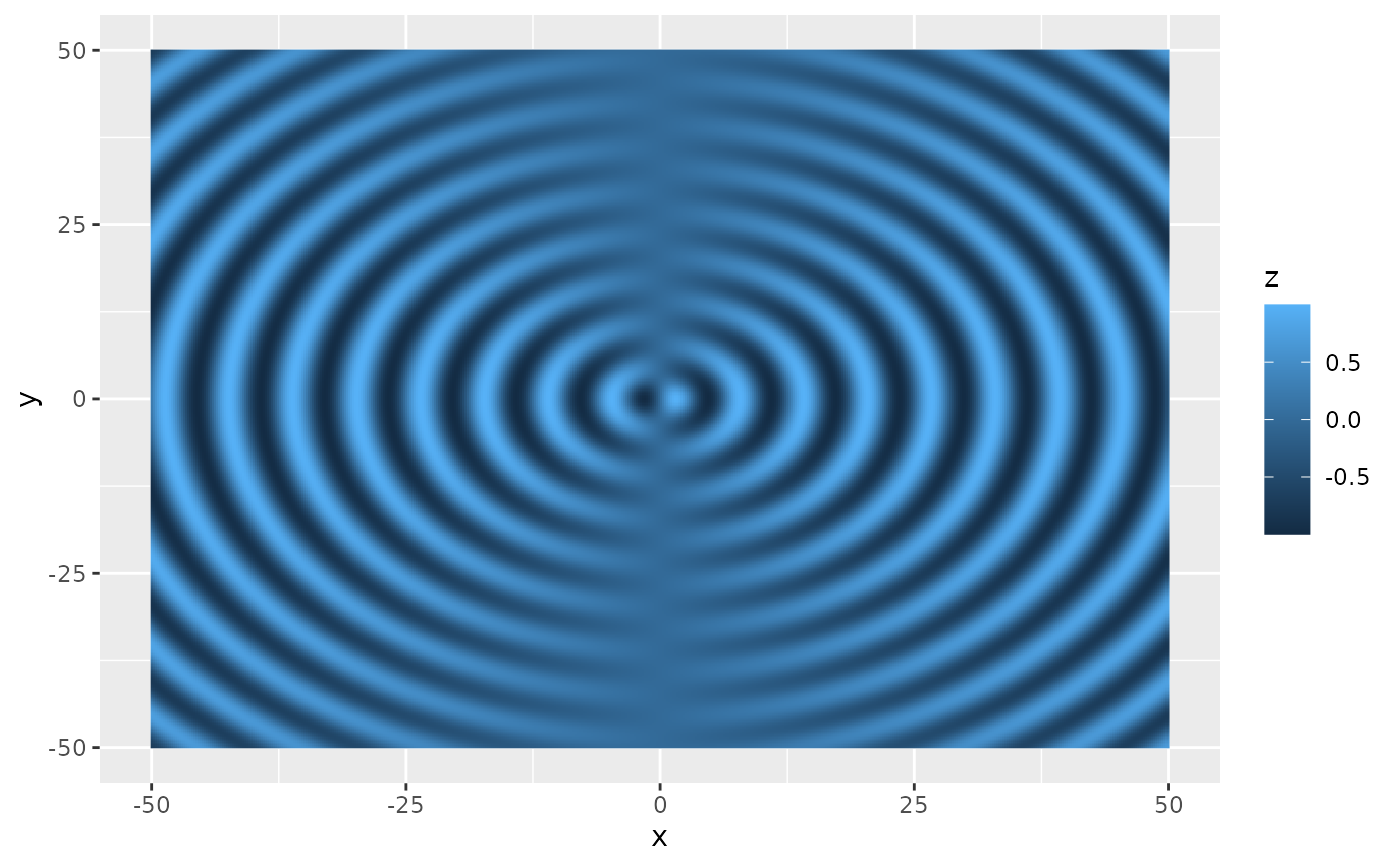

# Complex combination of radial and angular components
f_complex <- function(v) {
  x <- v[1]
  y <- v[2]
  r <- sqrt(x^2 + y^2)
  theta <- atan2(y, x)
  sin(r) * cos(theta)
}

ggplot() +
  geom_function_2d_1d(fun = f_complex, xlim = c(-50, 50), ylim = c(-50, 50), n = 500)

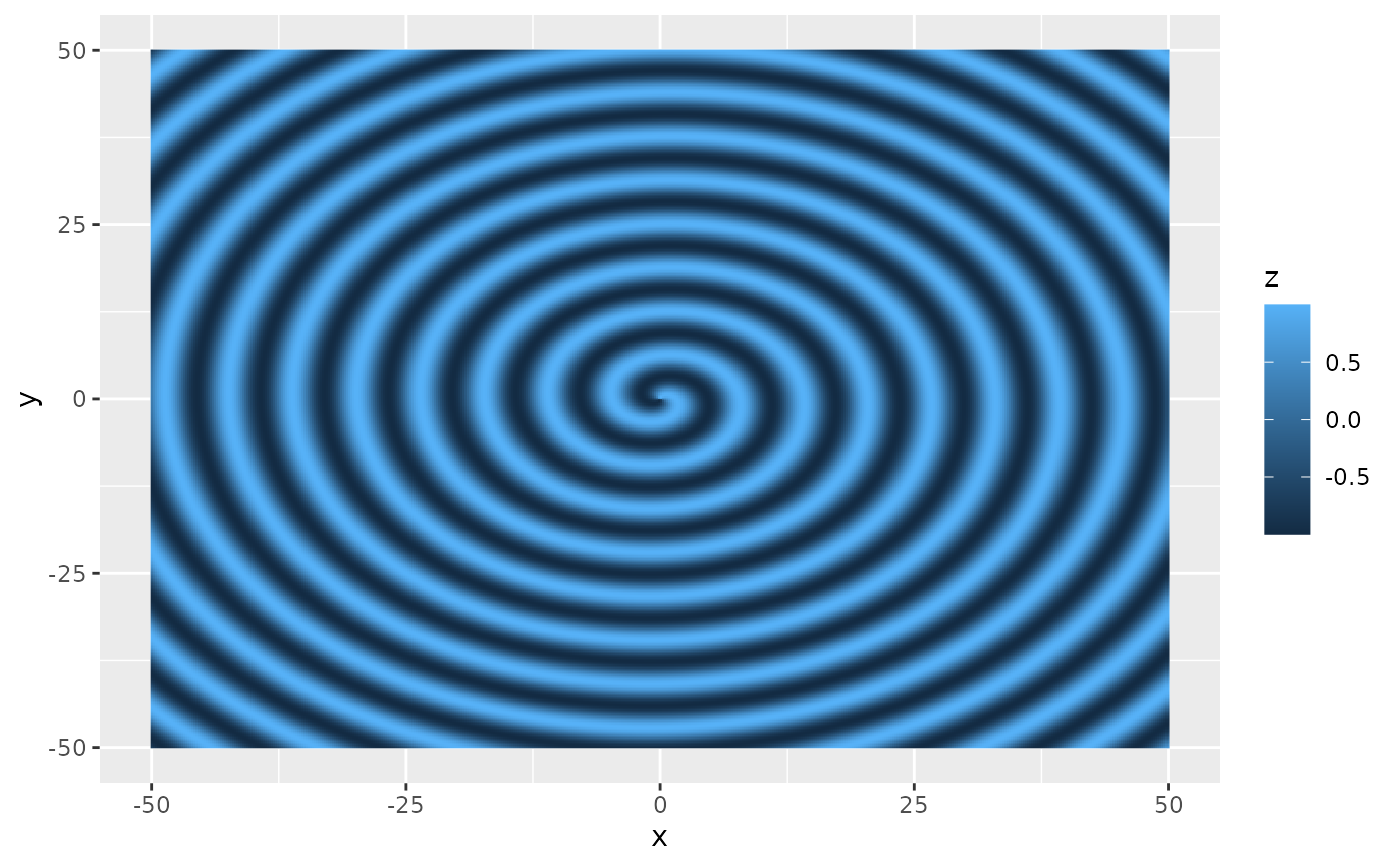

# Spiral pattern function
f_spiral <- function(v) {
  x <- v[1]
  y <- v[2]
  r <- sqrt(x^2 + y^2)
  theta <- atan2(y, x)
  sin(r + theta)
}

ggplot() +
  geom_function_2d_1d(fun = f_spiral, xlim = c(-50, 50), ylim = c(-50, 50), n = 500)
