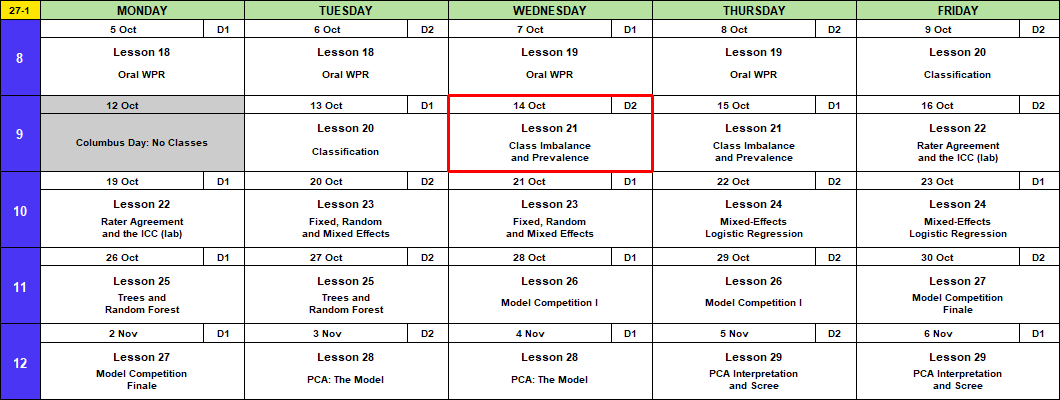

Calendar for 5 October to 6 November with a red box around Wednesday 14 October, Lesson 21, Class Imbalance and Prevalence.

Admin

What We Did: Lesson 20

Truth positive Truth negative
Predicted positive TP FP, a false alarm
Predicted negative FN, a miss TN
  • Accuracy \(= \dfrac{TP + TN}{n}\)
  • Sensitivity \(= \dfrac{TP}{TP + FN}\)
  • Specificity \(= \dfrac{TN}{TN + FP}\)
  • Precision \(= \dfrac{TP}{TP + FP}\)
  • \(F_1 = \dfrac{2\,TP}{2\,TP + FP + FN}\)
  • Heart study at threshold \(0.5\): 0 men warned, 91.3% accurate
  • Threshold tuned on \(F_1\): \(0.125\), catches 39 of 82

Clinic Appointments (Lesson 9)

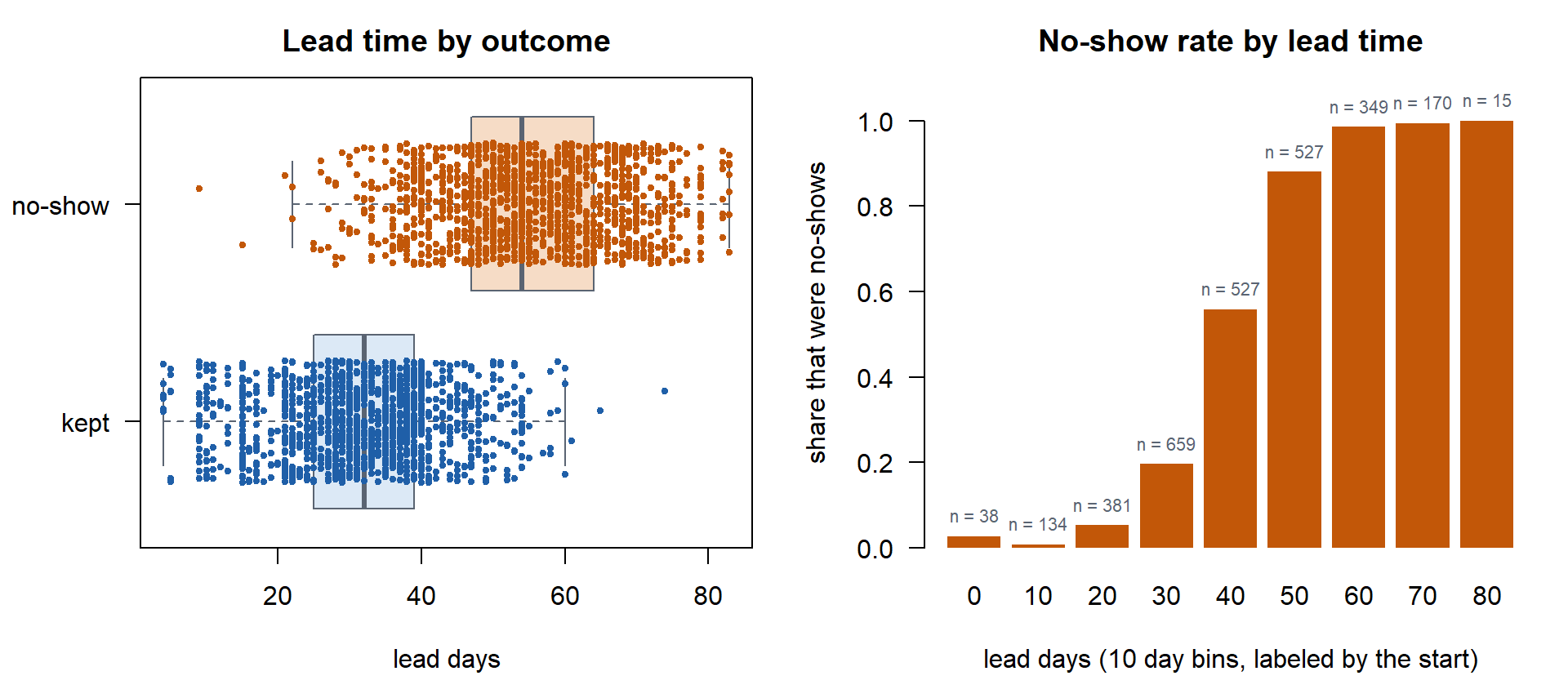

4,000 appointments, simulated from the Lesson 9 Air Force Academy clinic data. 2,053 were no-shows.

  • lead_days: days between booking the appointment and the visit
  • no_show: 1 if the patient missed the appointment, 0 if it was kept
  • set: train (2,800 appointments) or test (1,200)

clinic <- read.csv("data/L21_clinic.csv")
train  <- clinic[clinic$set == "train", ]
test   <- clinic[clinic$set == "test", ]

fit <- glm(no_show ~ lead_days, family = binomial, data = train)
summary(fit)

Call:
glm(formula = no_show ~ lead_days, family = binomial, data = train)

Coefficients:
             Estimate Std. Error z value Pr(>|z|)
(Intercept) -7.871644   0.294502  -26.73   <2e-16 ***
lead_days    0.184134   0.006815   27.02   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for binomial family taken to be 1)

    Null deviance: 3879.7  on 2799  degrees of freedom
Residual deviance: 1913.8  on 2798  degrees of freedom
AIC: 1917.8

Number of Fisher Scoring iterations: 6

\[\text{logit}\,P(\text{no-show}) = -7.87 + 0.184\,(\text{lead days})\]

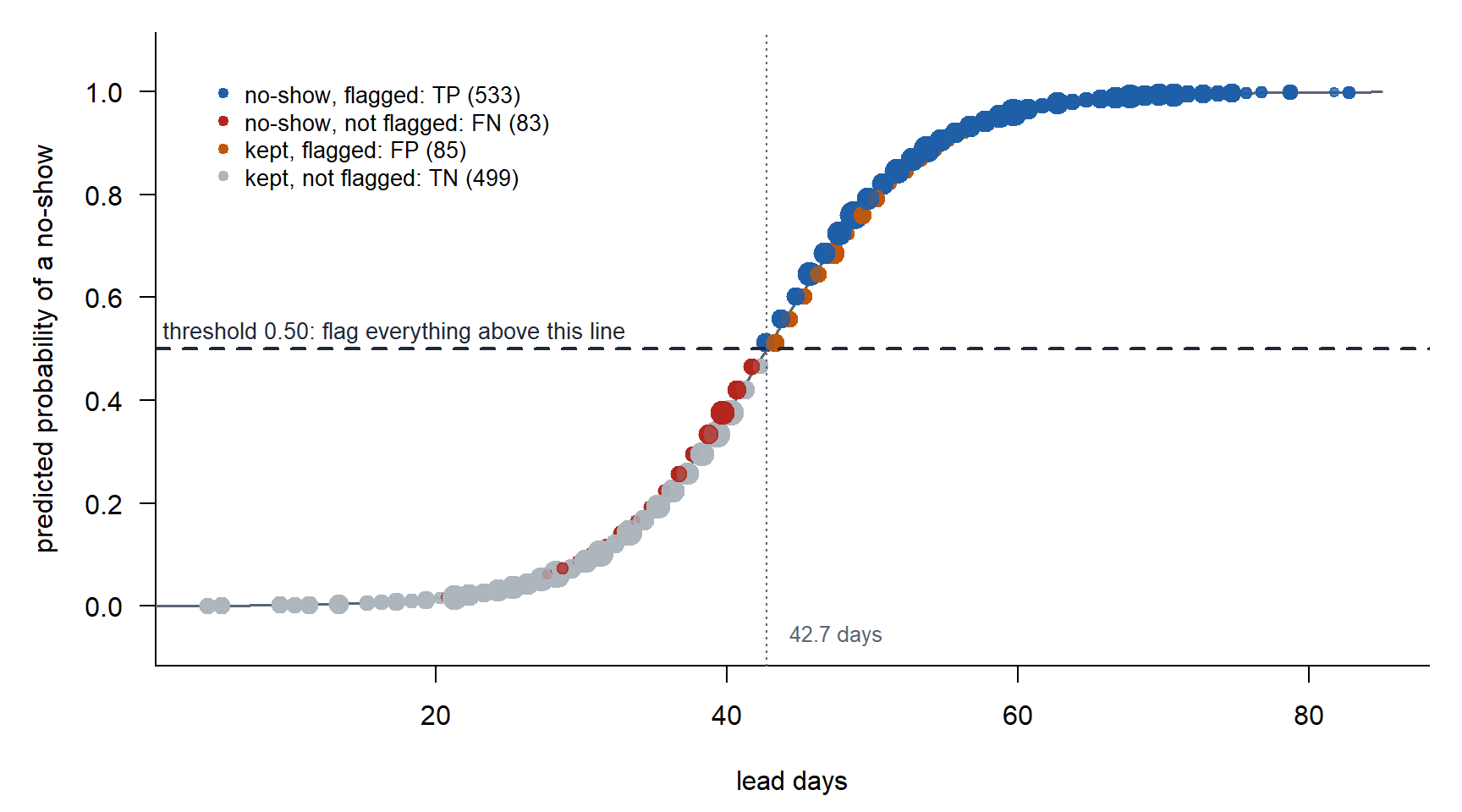

Flag an appointment when \(\hat{p} \ge 0.5\). Scored on the 1,200 test appointments.

Truth: no-show Truth: kept
Predicted no-show TP \(=\) 533 FP \(=\) 85
Predicted kept FN \(=\) 83 TN \(=\) 499
Metric Of Calculation
Accuracy all appointments, the share called right \(\dfrac{TP + TN}{n} = \dfrac{533 + 499}{1200} = 0.860\)
Sensitivity the real no-shows, the share caught \(\dfrac{TP}{TP + FN} = \dfrac{533}{533 + 83} = 0.865\)
Specificity the kept appointments, the share left alone \(\dfrac{TN}{TN + FP} = \dfrac{499}{499 + 85} = 0.854\)
Precision the flagged appointments, the share that were real \(\dfrac{TP}{TP + FP} = \dfrac{533}{533 + 85} = 0.862\)
\(F_1\)* the harmonic mean of sensitivity and precision \(\dfrac{2\,TP}{2\,TP + FP + FN} = \dfrac{2(533)}{2(533) + 85 + 83} = 0.864\)
Null classifier call every appointment a no-show, the larger class \(\dfrac{TP + FN}{n} = \dfrac{533 + 83}{1200} = 0.513\)

* \(F_1\), in plain terms

  • One score for two jobs: catch the real ones (sensitivity) and do not cry wolf (precision).
  • \(F_1 = \dfrac{TP}{TP + \frac{1}{2}(FP + FN)}\): the hits, against the hits plus the average of the two kinds of mistake.
  • Harmonic mean of \(a\) and \(b\): \(\dfrac{2ab}{a + b}\). It sits near the smaller one. Sensitivity \(1.00\) and precision \(0.10\) average to \(0.55\), but \(F_1 = 0.18\).
  • Flag everyone: sensitivity is \(1\), precision is poor, \(F_1\) is low. Flag one sure case: precision is \(1\), sensitivity is poor, \(F_1\) is low.
  • \(TN\) never appears, so a big pile of easy negatives cannot raise it. That is why it is used when the outcome is rare.

All at Once

library(yardstick)
p_hat <- predict(fit, test, type = "response")
results <- data.frame(
  truth = factor(ifelse(test$no_show == 1, "no-show", "kept"), levels = c("no-show", "kept")),
  pred  = factor(ifelse(p_hat >= 0.5, "no-show", "kept"), levels = c("no-show", "kept")))

conf_mat(results, truth = truth, estimate = pred)
          Truth
Prediction no-show kept
   no-show     533   85
   kept         83  499
five <- metric_set(accuracy, sensitivity, specificity, precision, f_meas)
five(results, truth = truth, estimate = pred)
# A tibble: 5 × 3
  .metric     .estimator .estimate
  <chr>       <chr>          <dbl>
1 accuracy    binary         0.86
2 sensitivity binary         0.865
3 specificity binary         0.854
4 precision   binary         0.862
5 f_meas      binary         0.864

What We’re Doing: Lesson 21

Objectives

  • Frame. Say what a rare outcome does to each metric before any model is fit.
  • Apply. Handle imbalance three ways (threshold, class weights, undersampling) and compare what each one flags.
  • Mean. Each fix moves the cutoff and none improves the model. Precision moves with prevalence.
  • Communicate. Report a classifier’s performance with the prevalence it was measured at.

Required Reading

Altman and Bland (1994), Diagnostic tests 2: predictive values, one page. Their positive predictive value is our precision.

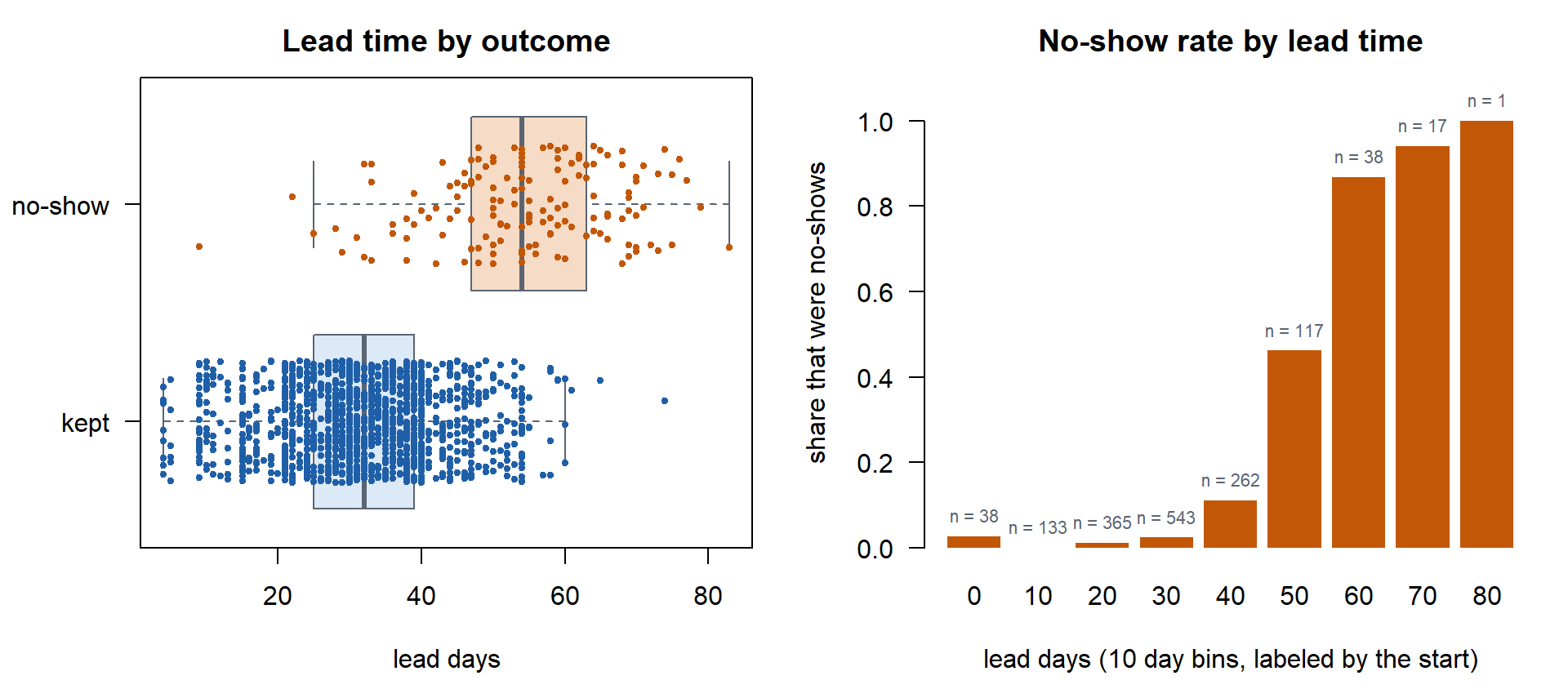

What If the Data Looked Like This?

2,163 appointments. 216 were no-shows. That is only 10 percent. Previously we had 51 percent.

rare  <- read.csv("data/L21_clinic_rare.csv")
train <- rare[rare$set == "train", ]
test  <- rare[rare$set == "test", ]

fit <- glm(no_show ~ lead_days, family = binomial, data = train)

\[\text{logit}\,P(\text{no-show}) = -9.88 + 0.180\,(\text{lead days})\]

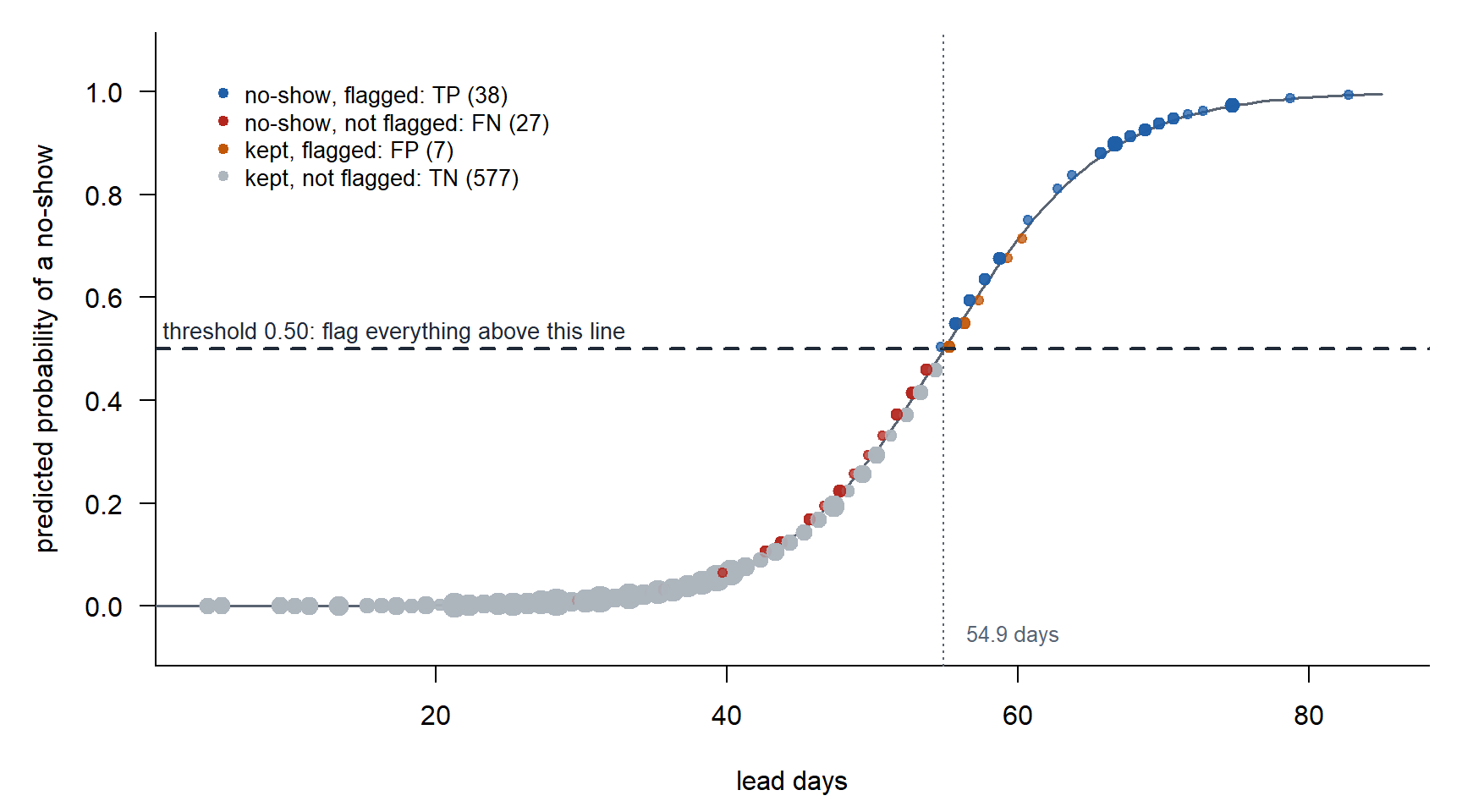

Flag an appointment when \(\hat{p} \ge 0.5\). Scored on the 649 test appointments.

Recalculate

Truth: no-show Truth: kept
Predicted no-show TP \(=\) 38 FP \(=\) 7
Predicted kept FN \(=\) 27 TN \(=\) 577
Metric Calculation Before
Accuracy \(\dfrac{TP + TN}{n} = \dfrac{38 + 577}{649} = 0.948\) 0.860
Sensitivity \(\dfrac{TP}{TP + FN} = \dfrac{38}{38 + 27} = 0.585\) 0.865
Specificity \(\dfrac{TN}{TN + FP} = \dfrac{577}{577 + 7} = 0.988\) 0.854
Precision \(\dfrac{TP}{TP + FP} = \dfrac{38}{38 + 7} = 0.844\) 0.862
\(F_1\) \(\dfrac{2\,TP}{2\,TP + FP + FN} = \dfrac{2(38)}{2(38) + 7 + 27} = 0.691\) 0.864
Null classifier (call every appointment kept) \(\dfrac{TN + FP}{n} = \dfrac{577 + 7}{649} = 0.900\) 0.513

What Is Out of Whack

  • Sensitivity: 0.865 to 0.585. The model misses 27 of the 65 no-shows.
  • \(F_1\): 0.864 to 0.691
  • Accuracy: up, 0.860 to 0.948. The null classifier scores 0.900.
  • The cutoff: flag at 42.7 days to flag at 54.9 days

What Rare Does to Each Metric

Metric Share of As prevalence falls
Accuracy everyone The null classifier scores \(1 - \text{prevalence}\)
Sensitivity the Truth positive column falls at a fixed threshold of \(0.5\)
Precision the Predicted positive row falls at a fixed sensitivity
\(F_1\) falls

Three Fixes

Fit on the training set. Scored on the 649 test appointments, 65 no-shows.

Fix 1: Move the Threshold

Tune the threshold on \(F_1\) by five-fold cross-validation on the training set, as in Lesson 20.

plain <- glm(no_show ~ lead_days, family = binomial, data = train)

ts <- seq(0.05, 0.50, by = 0.025)                     # the thresholds to try
set.seed(11)
fold <- sample(rep(1:5, length.out = nrow(train)))    # each training appointment gets a fold
p_cv <- numeric(nrow(train))
for (k in 1:5) {
  f <- glm(no_show ~ lead_days, family = binomial, data = train[fold != k, ])   # fit on four folds
  p_cv[fold == k] <- predict(f, train[fold == k, ], type = "response")          # predict the fifth
}

f1 <- sapply(ts, function(t) {
  flag <- p_cv >= t
  2 * sum(flag & train$no_show == 1) / (sum(flag) + sum(train$no_show == 1))
})
best <- ts[which.max(f1)]

flag <- predict(plain, test, type = "response") >= best

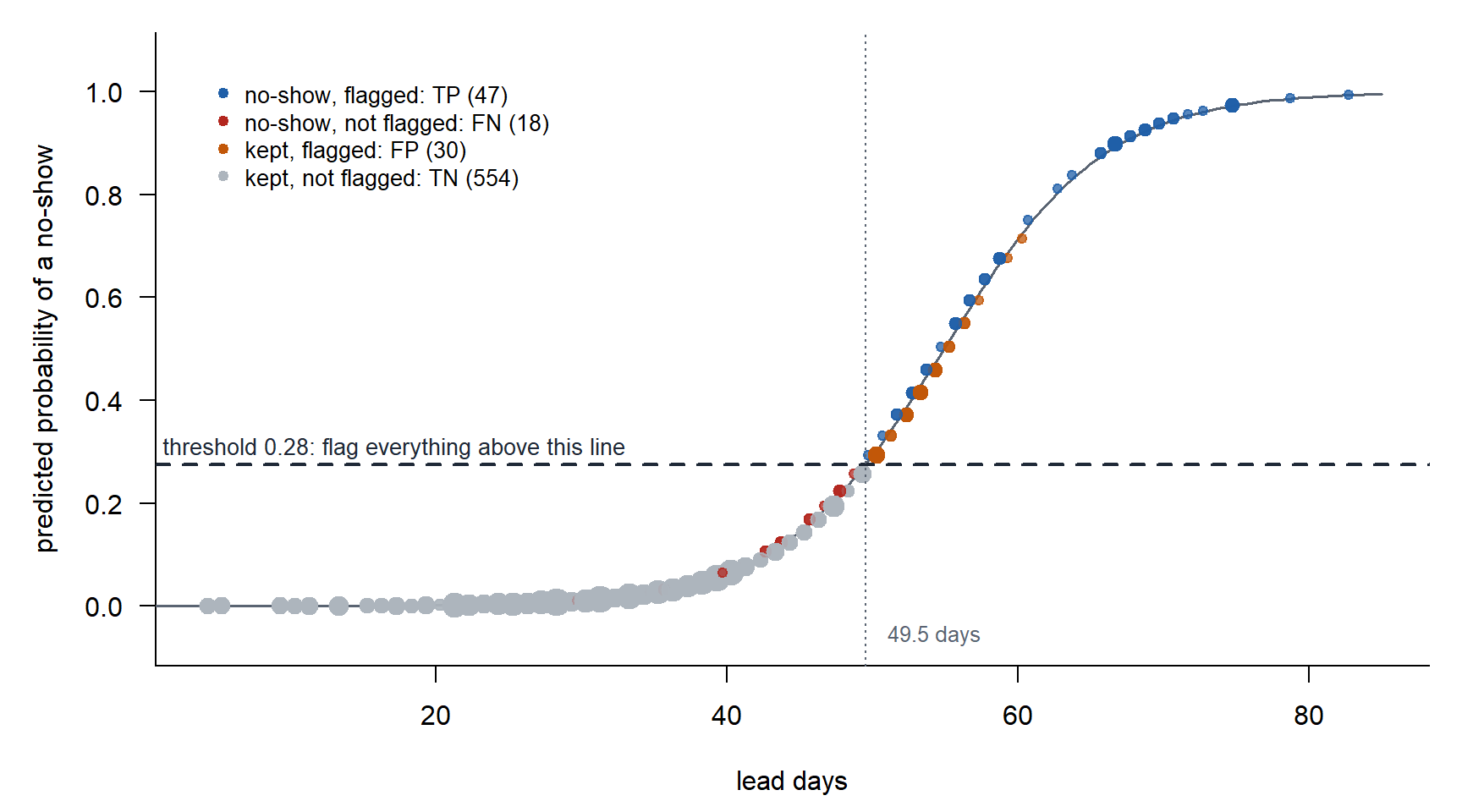

Flag when \(\hat{p} \ge 0.275\). Scored on the 649 test appointments.

Truth: no-show Truth: kept
Predicted no-show TP \(=\) 47 FP \(=\) 30
Predicted kept FN \(=\) 18 TN \(=\) 554
Metric Calculation Plain at 0.5
Accuracy \(\dfrac{TP + TN}{n} = \dfrac{47 + 554}{649} = 0.926\) 0.948
Sensitivity \(\dfrac{TP}{TP + FN} = \dfrac{47}{47 + 18} = 0.723\) 0.585
Specificity \(\dfrac{TN}{TN + FP} = \dfrac{554}{554 + 30} = 0.949\) 0.988
Precision \(\dfrac{TP}{TP + FP} = \dfrac{47}{47 + 30} = 0.610\) 0.844
\(F_1\) \(\dfrac{2\,TP}{2\,TP + FP + FN} = \dfrac{2(47)}{2(47) + 30 + 18} = 0.662\) 0.691
  • Same model, same curve. Only the threshold moved.
  • The cutoff went from 54.9 days to 49.5 days.
  • 77 test appointments flagged, up from 45.

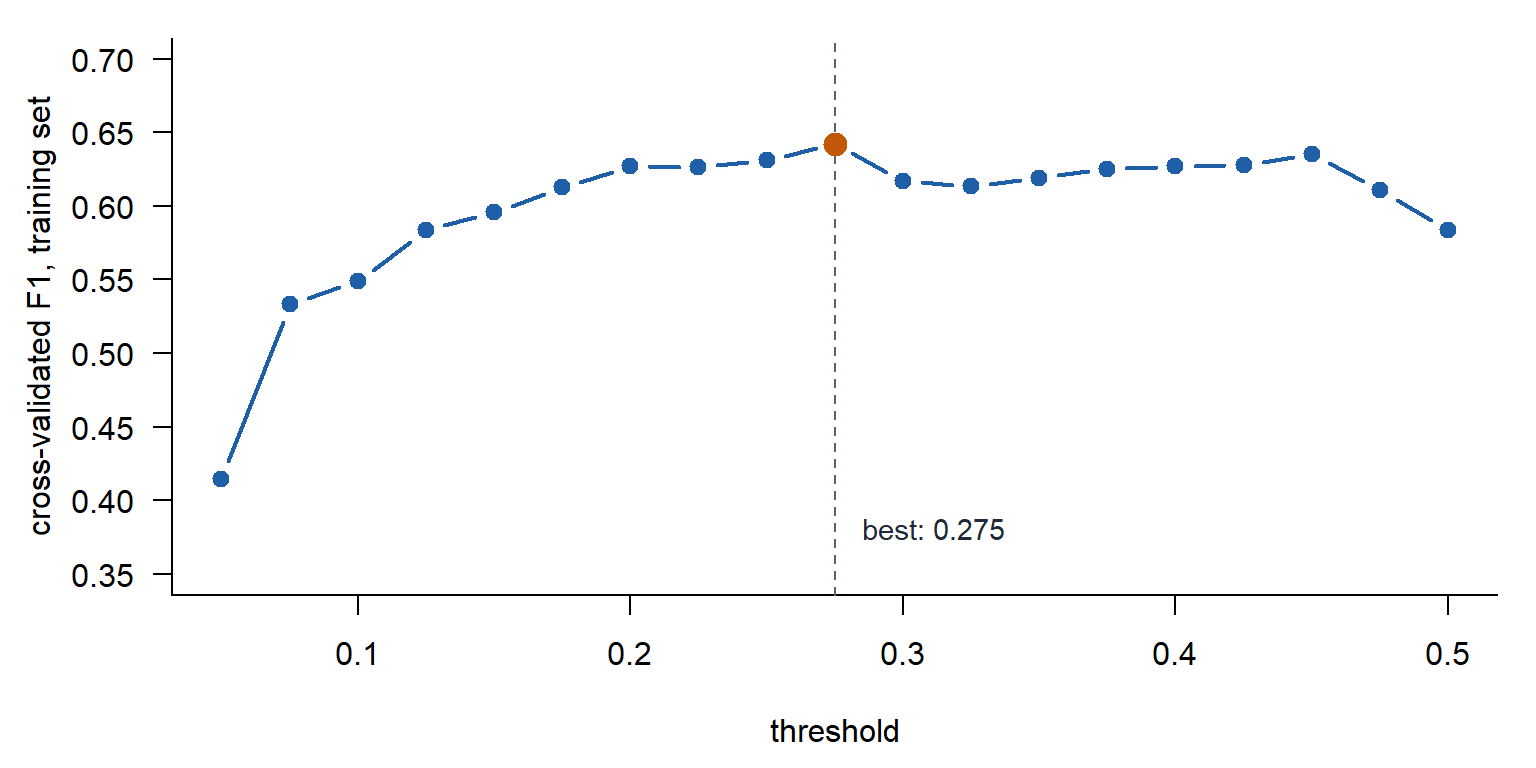

  • On the training folds \(F_1\) was 0.642 at 0.275 and 0.584 at \(0.5\). On the test set it is 0.662 and 0.691: with 65 no-shows, a few appointments move it.

Fix 2: Class Weights

Each training no-show counts as \(\dfrac{n_0}{n_1} = \dfrac{1363}{151} = 9.03\) appointments.

w <- ifelse(train$no_show == 1, sum(train$no_show == 0) / sum(train$no_show == 1), 1)
weighted <- glm(no_show ~ lead_days, family = binomial, data = train, weights = w)

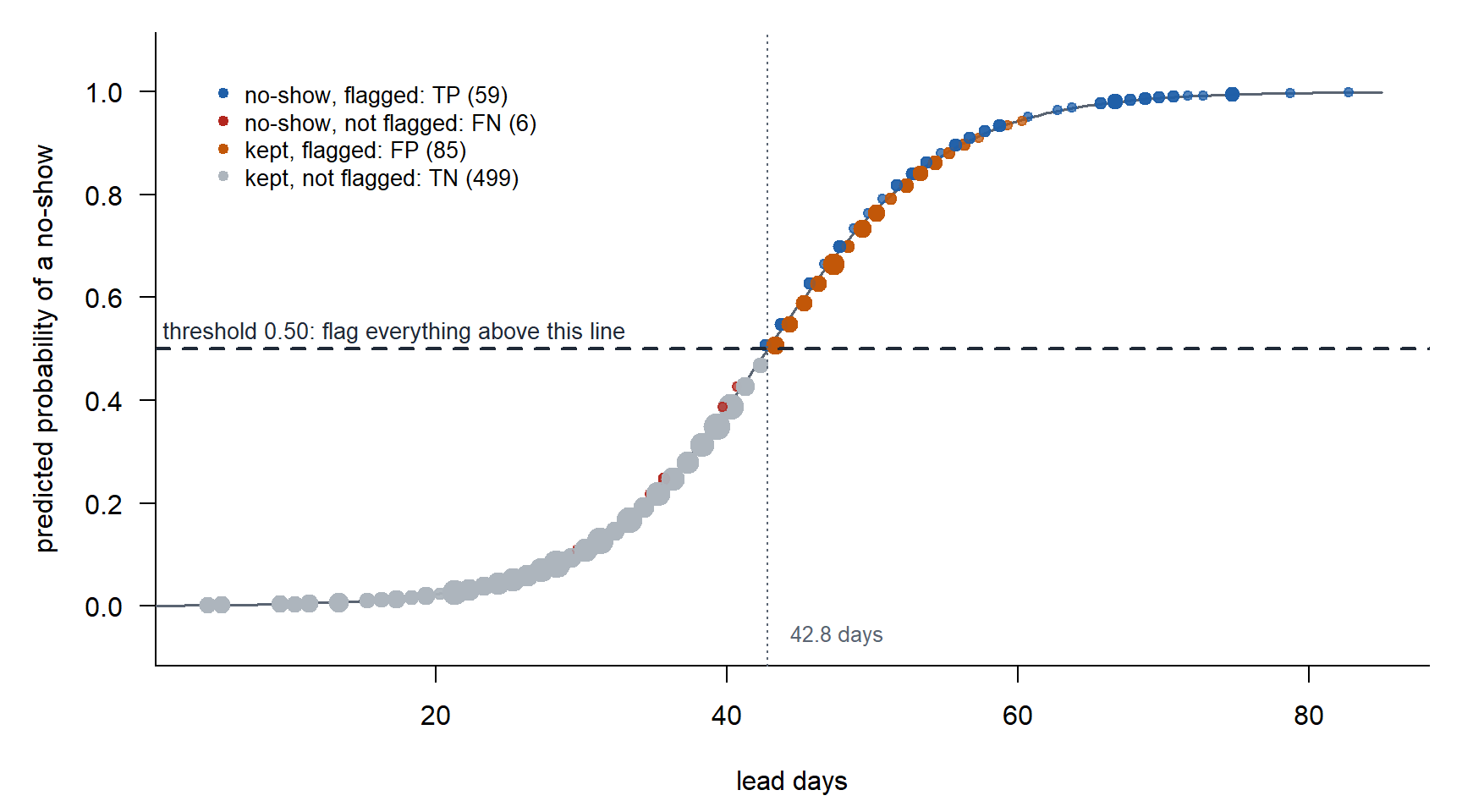

Flag when \(\hat{p} \ge 0.5\). Scored on the 649 test appointments.

Truth: no-show Truth: kept
Predicted no-show TP \(=\) 59 FP \(=\) 85
Predicted kept FN \(=\) 6 TN \(=\) 499
Metric Calculation Plain at 0.5
Accuracy \(\dfrac{TP + TN}{n} = \dfrac{59 + 499}{649} = 0.860\) 0.948
Sensitivity \(\dfrac{TP}{TP + FN} = \dfrac{59}{59 + 6} = 0.908\) 0.585
Specificity \(\dfrac{TN}{TN + FP} = \dfrac{499}{499 + 85} = 0.854\) 0.988
Precision \(\dfrac{TP}{TP + FP} = \dfrac{59}{59 + 85} = 0.410\) 0.844
\(F_1\) \(\dfrac{2\,TP}{2\,TP + FP + FN} = \dfrac{2(59)}{2(59) + 85 + 6} = 0.565\) 0.691
  • A new model, so the curve moved. The threshold is back at \(0.5\).
  • The cutoff is 42.8 days. Fix 1 put it at 49.5 days.
  • 144 test appointments flagged. A threshold of 0.10, the prevalence, on the plain model flags the same 144.

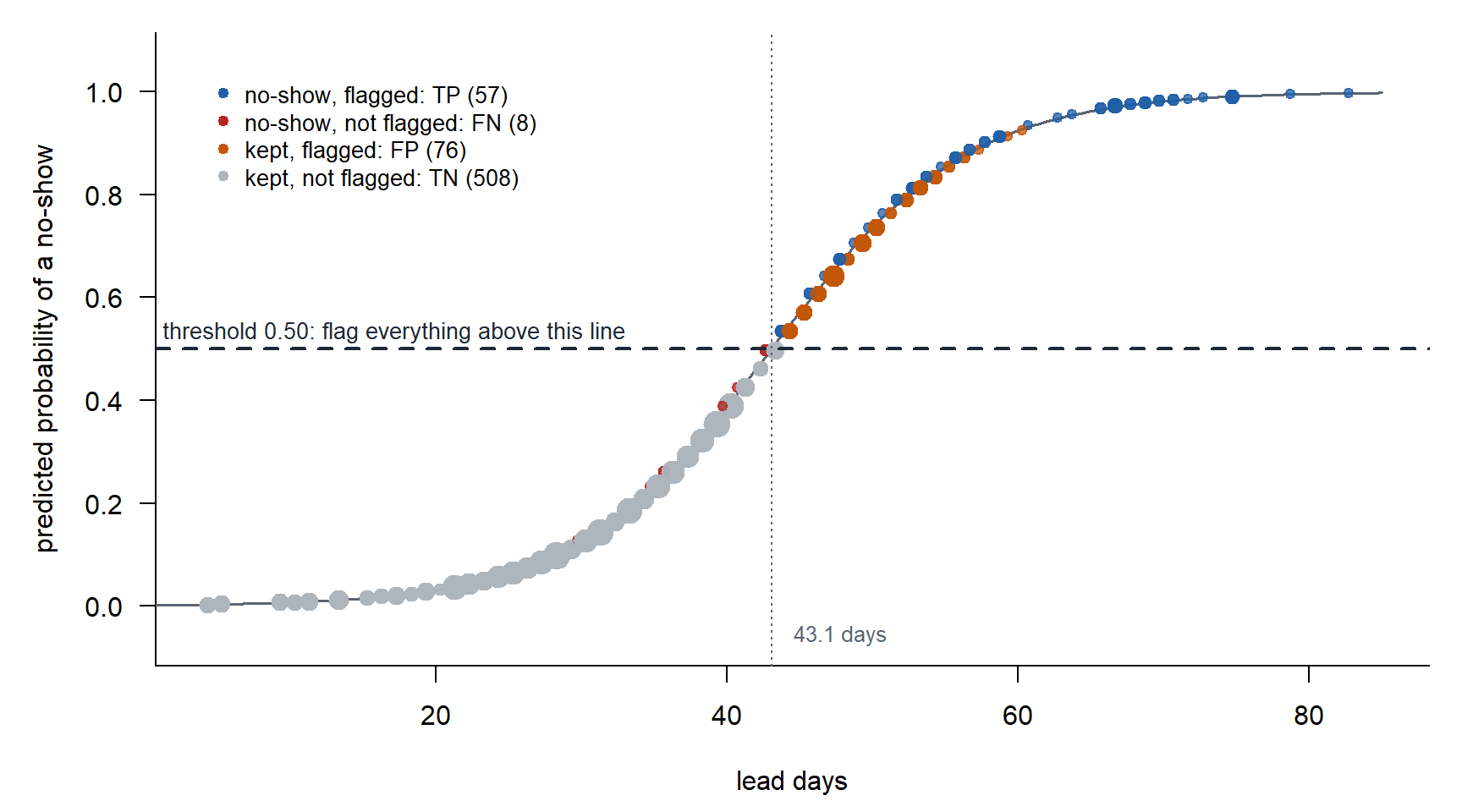

Fix 3: Undersample

In the training set, keep all 151 no-shows and a random 151 of the 1,363 kept appointments.

set.seed(376)
keep  <- c(which(train$no_show == 1), sample(which(train$no_show == 0), sum(train$no_show == 1)))
under <- glm(no_show ~ lead_days, family = binomial, data = train[keep, ])

Flag when \(\hat{p} \ge 0.5\). Scored on the 649 test appointments.

Truth: no-show Truth: kept
Predicted no-show TP \(=\) 57 FP \(=\) 76
Predicted kept FN \(=\) 8 TN \(=\) 508
Metric Calculation Plain at 0.5
Accuracy \(\dfrac{TP + TN}{n} = \dfrac{57 + 508}{649} = 0.871\) 0.948
Sensitivity \(\dfrac{TP}{TP + FN} = \dfrac{57}{57 + 8} = 0.877\) 0.585
Specificity \(\dfrac{TN}{TN + FP} = \dfrac{508}{508 + 76} = 0.870\) 0.988
Precision \(\dfrac{TP}{TP + FP} = \dfrac{57}{57 + 76} = 0.429\) 0.844
\(F_1\) \(\dfrac{2\,TP}{2\,TP + FP + FN} = \dfrac{2(57)}{2(57) + 76 + 8} = 0.576\) 0.691
  • A new model fit on 302 training appointments. The threshold is \(0.5\).
  • The cutoff is 43.1 days.
  • 133 test appointments flagged, close to Fix 2. The draw is random, so another seed moves these numbers a little.

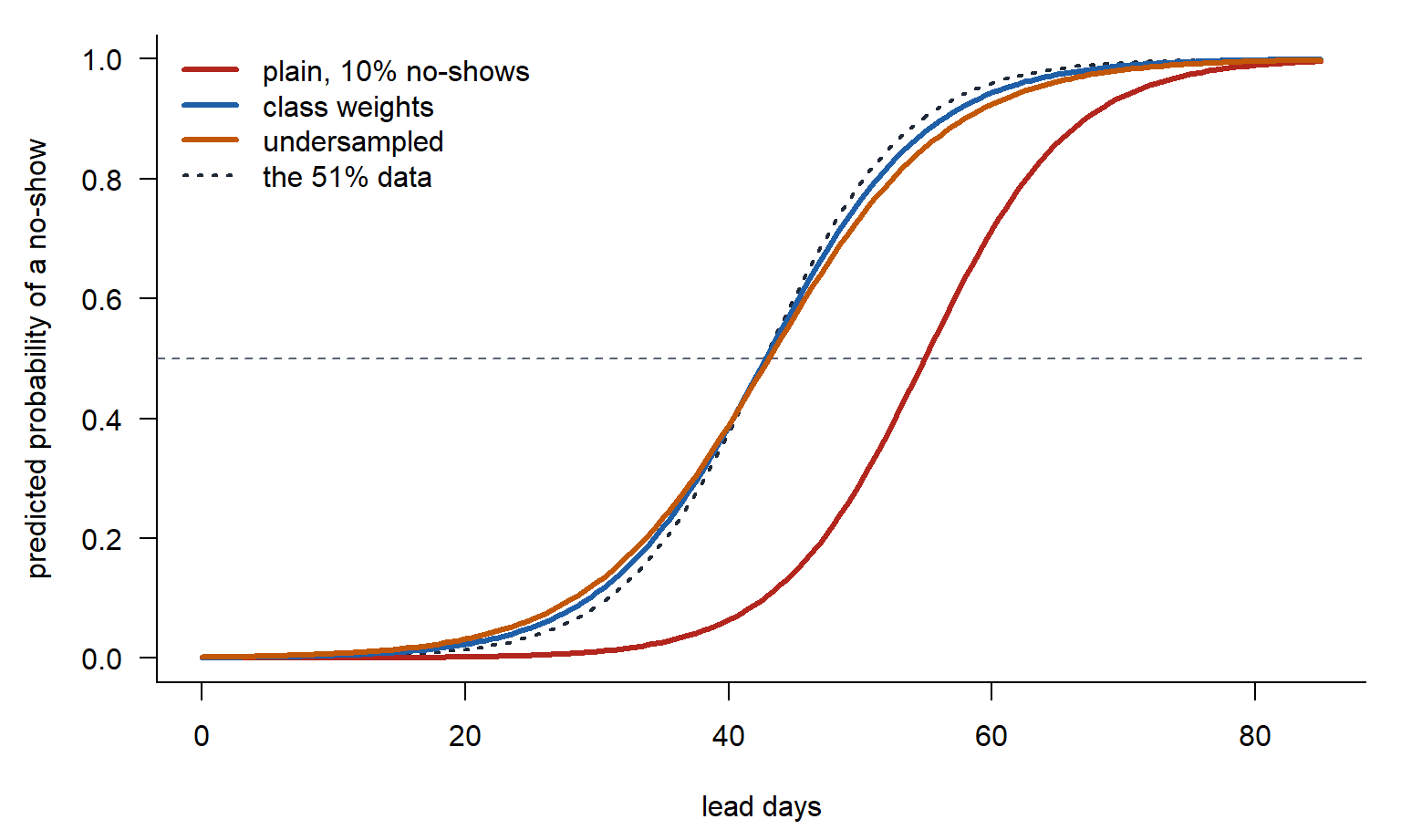

Side by Side

All four rows are scored on the same 649 test appointments.

Model Threshold Flag at (days) Flagged Caught Sensitivity Precision \(F_1\)
Plain \(0.5\) 54.9 45 38 0.585 0.844 0.691
Plain, tuned \(0.275\) 49.5 77 47 0.723 0.610 0.662
Class weights \(0.5\) 42.8 144 59 0.908 0.410 0.565
Undersampled \(0.5\) 43.1 133 57 0.877 0.429 0.576
ImportantTakeaway
  • A rare outcome breaks the \(0.5\) threshold, not the model.
  • The threshold is yours to set. Tuned on \(F_1\): 47 of 65 no-shows caught, 30 false alarms.
  • Class weights and undersampling set it for you, near the prevalence: 59 caught, 85 false alarms.
  • None of the three improves the model. Each one moves the cutoff.
  • Choose the cutoff from what a miss and a false alarm cost.
  • Report sensitivity and precision together, with the null classifier and the prevalence.
  • All of this works for any model that gives a probability. So far: logistic regression (Lessons 9 and 20) and the random forest you saw in Lesson 20. Coming: mixed-effects logistic regression (Lesson 24), trees and random forest (Lesson 25).

Precision Moves with Prevalence

  • Prevalence: of all the appointments, the share that really are no-shows. How common the thing you are hunting is.
  • Precision: of the appointments you flagged, the share that really are no-shows. How often a flag is right.
ImportantPrecision at a Given Prevalence

\[\text{precision} = \frac{\text{no-shows caught}}{\text{no-shows caught} + \text{kept, flagged by mistake}} = \frac{\text{sensitivity}\cdot\text{prevalence}}{\text{sensitivity}\cdot\text{prevalence} + (1 - \text{specificity})(1 - \text{prevalence})}\]

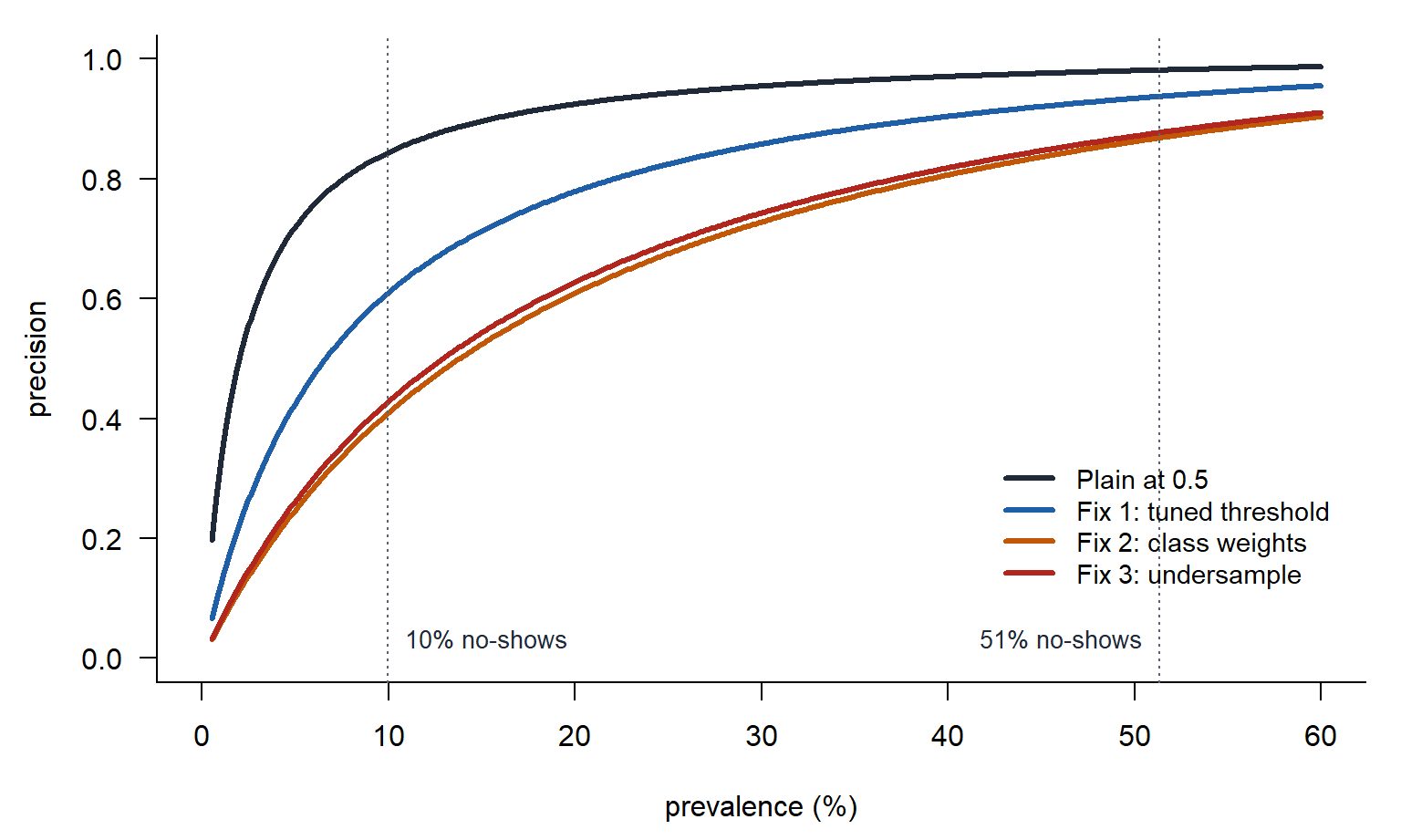

Precision at Each Prevalence

Plain at 0.5 Fix 1: tuned threshold Fix 2: class weights Fix 3: undersample
Sensitivity, at every prevalence 0.585 0.723 0.908 0.877
Specificity, at every prevalence 0.988 0.949 0.854 0.870
Precision at 51.3% prevalence 0.981 0.937 0.868 0.877
Precision at 25.0% prevalence 0.942 0.824 0.675 0.692
Precision at 10.0% prevalence 0.844 0.609 0.409 0.427
Precision at 5.0% prevalence 0.720 0.426 0.247 0.262
Precision at 2.6% prevalence 0.566 0.273 0.143 0.152

Reporting It

At a threshold of \(0.275\), on appointments of which 10% were no-shows, the model caught 72% of the no-shows and 61% of its flags were real. At a prevalence of 2.6%, 27% of its flags would be real.

Before You Leave

Today

  • A rare outcome: accuracy and the \(0.5\) threshold both fail
  • Threshold, class weights, undersampling: each moves the cutoff, none improves the model
  • Sensitivity and specificity do not move with prevalence. Precision does.
  • Report performance with the prevalence it was measured at

Any questions?

Next Lesson

Lesson 22: Rater Agreement and the ICC (lab)

  • Frame. A rater is a classifier with no truth column, so agreement replaces accuracy.
  • Apply. Percent agreement, kappa, PABAK, and the ICC from a two-way ANOVA with raters as blocks.
  • Mean. Chance agreement rises as prevalence moves to an extreme, so kappa collapses while agreement stays high. The ICC is the share of variance that is rep to rep.
  • Communicate. Tell the first sergeant whether the graders agree and which grader is the problem.

Reading: Koo and Li (2016)

Upcoming Graded Events

  • Capstone milestone 1 (exploratory): due 2359 Friday 16 October
  • Block 3 quiz (Lessons 20 to 23): Lesson 27
  • Memo 4: due in class, hard copy, Lesson 27
