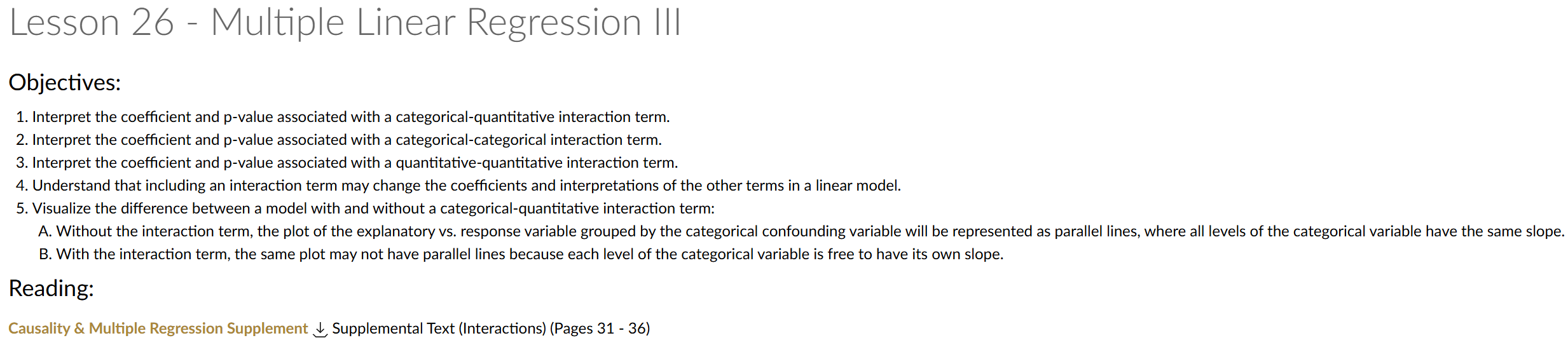

Lesson 26 - Multiple Linear Regression III

Lesson Administration

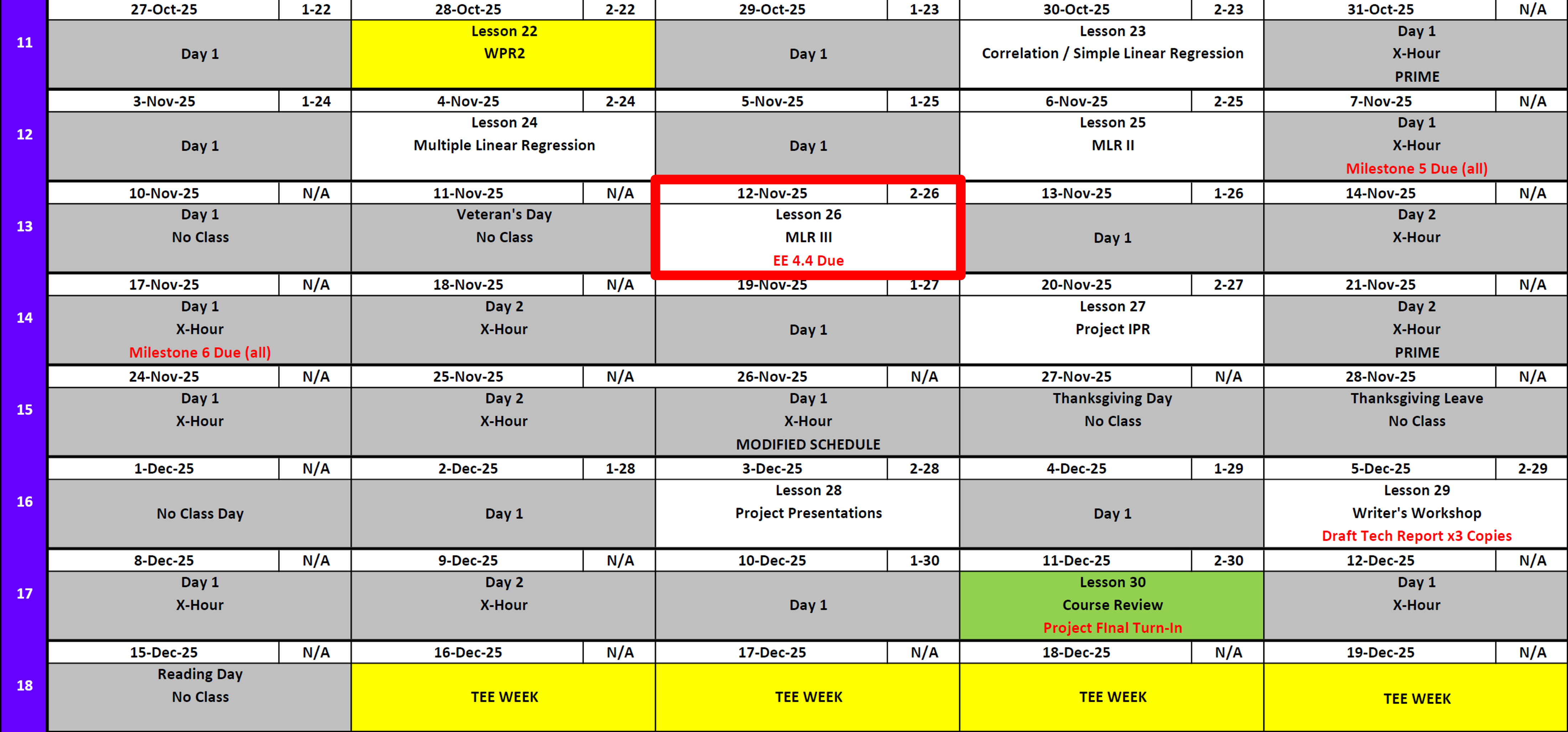

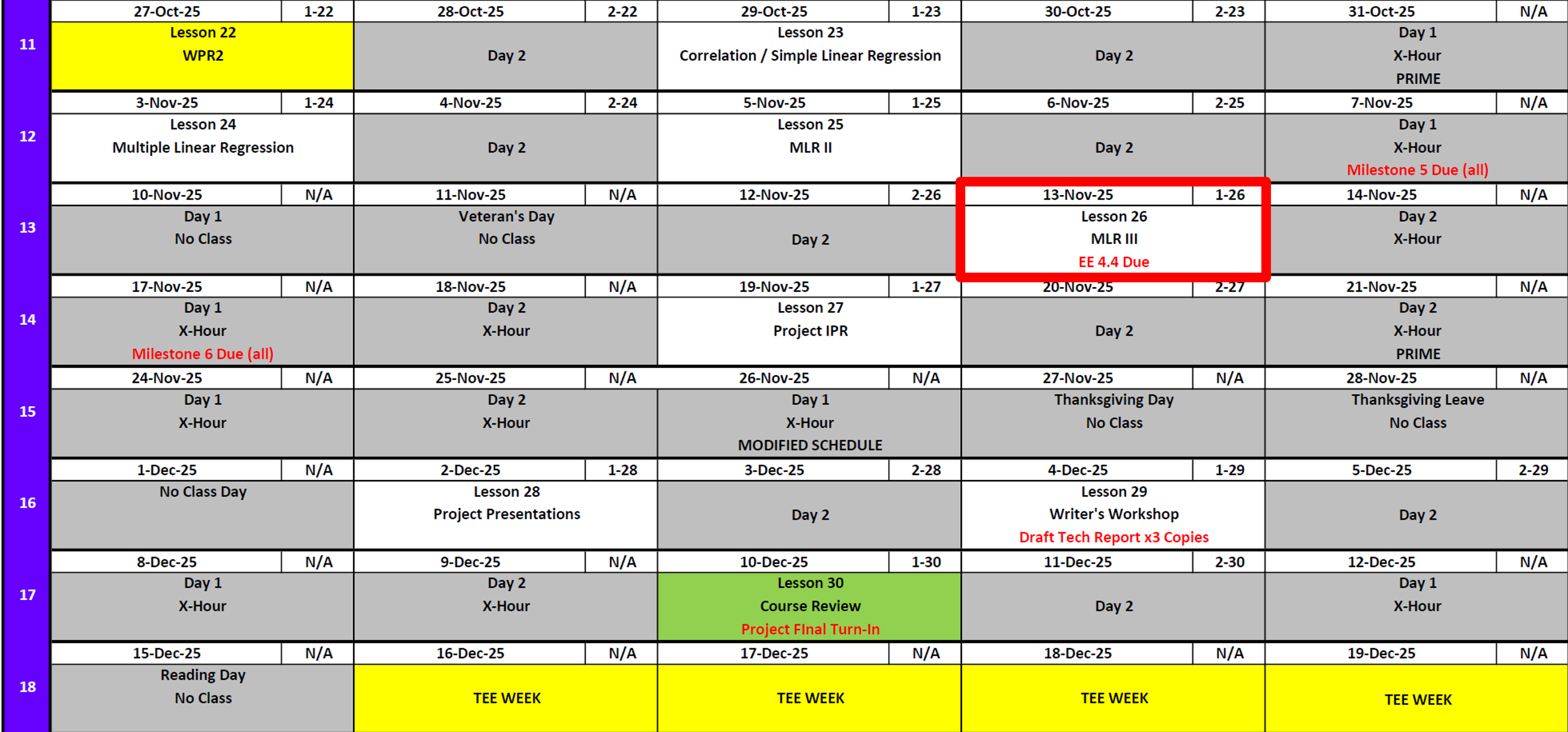

Calendar

Day 1

Day 2

No GradeScope

Download your feedback from GradeScope.

Exploration Exercise 4.4

  • Lesson 26
  • 12-13 November 2025
  • Link: EE 4.4

Milestone 6: Draft Tech Report

IPR

Project Presentations

  • Need to know who will not be here on presentation day because of CPRC
  • 2/3 December - Primary
  • 24/25 Nov Alternate

My current expectations

2 Dec

  • 1: Charles Goetz, John McKillop
  • 2: Jack McDaniel, Hunter McDonnell
  • 4: Jenna Din, Karina Lawrence
  • 5: John Afari-Aikins, Joshua George
  • 6: Harrison Lavery, James Midberry, Macoy Noack
  • 7: Nathan Coldren, Aarav Gupta
  • 8: Brandon Freeman, John Minicozzi

24 Nov - 3: Annabella Conti, Tehya Meers

2 Dec

  • 1: Joseph Johnson, Nehemiah Vann
  • 2: Lucas Kinkead, Andrew Rubio
  • 3: Cherokee Chambers, Trevor Thanepohn
  • 4: Mary Arengo, Chad Dohl
  • 5: Vanessa Hudson-Odoi, Tatiana Stockbower
  • 6: Sawyer Shelton, Benjamin Walter
  • 9: Campbell Sager, Samuel Zagame

24 Nov

  • 7: Liam Wills, Logan Wint
  • 8: Paul Chau, Benjamin Records

2 Dec

  • 1: Elena Andrade, Gabrielle Warnre
  • 2: Evan Campbell, Allan Sindler
  • 3: Benjamin Aguilar Winchell, Dillon Bhutani
  • 4: Bahawal Maan, Joseph Schwartz
  • 5: Jacob Bettencourt, Daniel Ogordi
  • 6: Braeden Helmkamp, Isabela Tahmazian
  • 7: Barbara Forgues, Alex Jo
  • 8: David Ahn, Sangwoo Park
  • 9: Gennaro Smith

24 Nov

  • 9: Logan Lanham

3 Dec

25 Nov

Paige McPherson Justin Davidson
Christian Bachmann Parker Harris

Milestone 7

  • Draft Technical Report
  • Lesson 29: Bring 3 Copies

Milestone 8

  • Final Technical Report
  • Course Review

TEE Times

Date Start End
Wed, 17 Dec 2025 1300 1630
Thu, 18 Dec 2025 0730 1100

DMath Frisbee PLAYOFFS!!

Math 1 vs Systems and Friends

8-0

Army

Reese

Me

Multiple Linear Regression

A Reminder

mod1 <- lm(formula = mpg ~ wt + as.factor(cyl) + hp + hp:as.factor(cyl), data = mtcars)
summary(mod1)

Call:
lm(formula = mpg ~ wt + as.factor(cyl) + hp + hp:as.factor(cyl),
    data = mtcars)

Residuals:
    Min      1Q  Median      3Q     Max
-3.1864 -1.4098 -0.4022  1.0186  4.3920

Coefficients:
                    Estimate Std. Error t value Pr(>|t|)
(Intercept)         41.87732    3.23293  12.953 1.37e-12 ***
wt                  -3.05994    0.68275  -4.482 0.000143 ***
as.factor(cyl)6     -9.98213    5.76950  -1.730 0.095931 .
as.factor(cyl)8    -11.72793    4.22507  -2.776 0.010276 *
hp                  -0.09947    0.03487  -2.853 0.008576 **
as.factor(cyl)6:hp   0.07809    0.05236   1.492 0.148335
as.factor(cyl)8:hp   0.08602    0.03703   2.323 0.028601 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 2.3 on 25 degrees of freedom
Multiple R-squared:  0.8826,    Adjusted R-squared:  0.8544
F-statistic: 31.32 on 6 and 25 DF,  p-value: 1.831e-10

We can write the fitted model as

\[ \begin{aligned} \widehat{mpg} &= 41.877 - 3.060\,(\text{wt}) - 9.982\,(\text{cyl6}) - 11.728\,(\text{cyl8}) - 0.09947\,(\text{hp}) + 0.07809\,(\text{hp}\times \text{cyl6}) + 0.08602\,(\text{hp}\times \text{cyl8}) \end{aligned} \]

Linearity — the relationship between predictors and the response is roughly linear
Independence — observations are independent of each other
Normal Distribution — residuals are approximately normal
Equal Variance — variability of residuals is consistent across fitted values

Linearity

Check whether the relationship between predictors and the response is roughly linear.

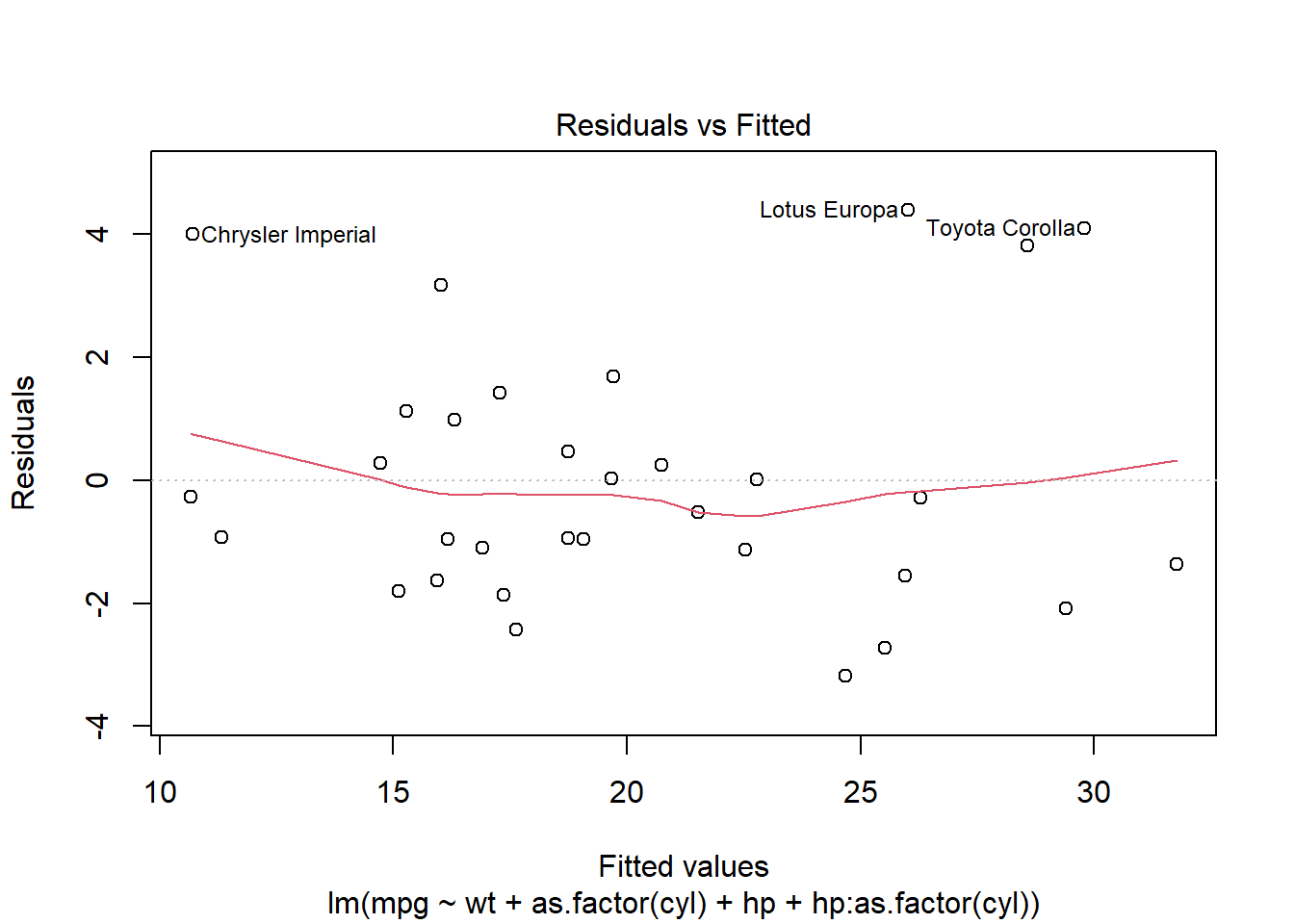

Use a residuals vs fitted plot — you want to see a random scatter (no pattern).

plot(mod1, which = 1)

Independence

We can’t test this from the model alone — it depends on how the data were collected.
You must verify that each observation is independent (e.g., different cars, people, or trials).

Normal Distribution

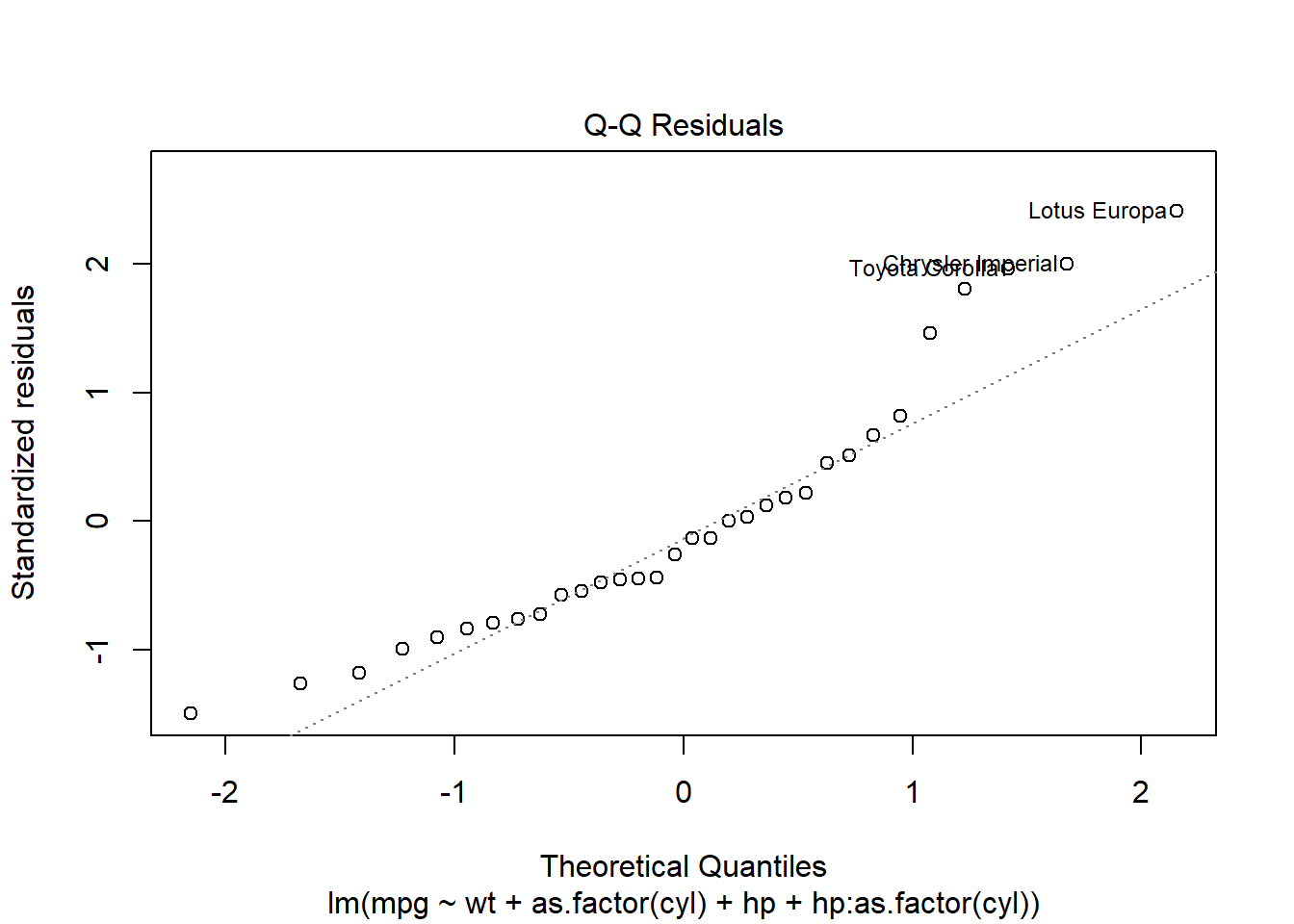

Check whether residuals are approximately normally distributed using a Q-Q plot.

plot(mod1, which = 2)

Equal Variance

Check for constant variance (homoscedasticity) — residuals should have similar spread across fitted values.

plot(mod1, which = 1)

In Class Exercise

library(tidyverse)
diamonds
# A tibble: 53,940 × 10
   carat cut       color clarity depth table price     x     y     z
   <dbl> <ord>     <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
 1  0.23 Ideal     E     SI2      61.5    55   326  3.95  3.98  2.43
 2  0.21 Premium   E     SI1      59.8    61   326  3.89  3.84  2.31
 3  0.23 Good      E     VS1      56.9    65   327  4.05  4.07  2.31
 4  0.29 Premium   I     VS2      62.4    58   334  4.2   4.23  2.63
 5  0.31 Good      J     SI2      63.3    58   335  4.34  4.35  2.75
 6  0.24 Very Good J     VVS2     62.8    57   336  3.94  3.96  2.48
 7  0.24 Very Good I     VVS1     62.3    57   336  3.95  3.98  2.47
 8  0.26 Very Good H     SI1      61.9    55   337  4.07  4.11  2.53
 9  0.22 Fair      E     VS2      65.1    61   337  3.87  3.78  2.49
10  0.23 Very Good H     VS1      59.4    61   338  4     4.05  2.39
# ℹ 53,930 more rows

  1. In addition to carat size, what other variables might be associated with the price of a diamond?

  2. Create a comparative box plot of price (response variable on the y-axis) by cut (explanatory variable on the x-axis).
    Which cut category tends to have higher prices? Is this what you would expect?

  3. Fit a simple linear model for price using carat as the explanatory variable and price as the response variable.

  1. Write out the regression equation with intercept, coefficients, and variable names.
  2. Interpret the coefficient of carat in the context of this model.
  3. What is the strength of evidence that carat is related to price?

  1. Create a scatterplot of price versus carat, colored by cut.
    Do higher-quality cuts tend to cluster at different price or carat ranges?
    How might this influence your interpretation of the relationship between carat and price?

  2. Fit a multiple regression model for price using both carat and cut as explanatory variables.

  1. Write out the regression equation with intercept, coefficients, and variable names.
  2. Interpret the coefficient for cut while controlling for carat.

  1. How much total variation in diamond price is explained by this model (i.e., (R^2))?

  2. Fit a multiple regression model for price using both carat and cut, including an interaction between them.
    Write out the regression equation with intercept, coefficients, and variable names.

  3. Among the Ideal cut diamonds, how much does price increase for a one-unit increase in carat?

  4. Among the Fair cut diamonds, how much does price increase for a one-unit increase in carat?

  5. Is the interaction between carat and cut statistically significant?
    State your null and alternative hypotheses for the interaction term and report the test statistic and p-value.

  6. To what population are you willing to generalize your results?
    Can you draw a cause-and-effect conclusion about carat size and diamond price? Why or why not?

  7. Check each of the four Validity Conditions for the Multiple Regression you conducted in #7.

Partial Solution

Ask a Research Question

  1. In addition to carat size, what other variables might be associated with the price of a diamond?

Design a Study and Explore the Data

The diamonds dataset in R contains information about 53,940 diamonds, including their price (in U.S. dollars), carat, cut, color, clarity, and several physical measurements (x, y, z, depth, table).

We’ll examine how carat size and quality characteristics relate to diamond price.

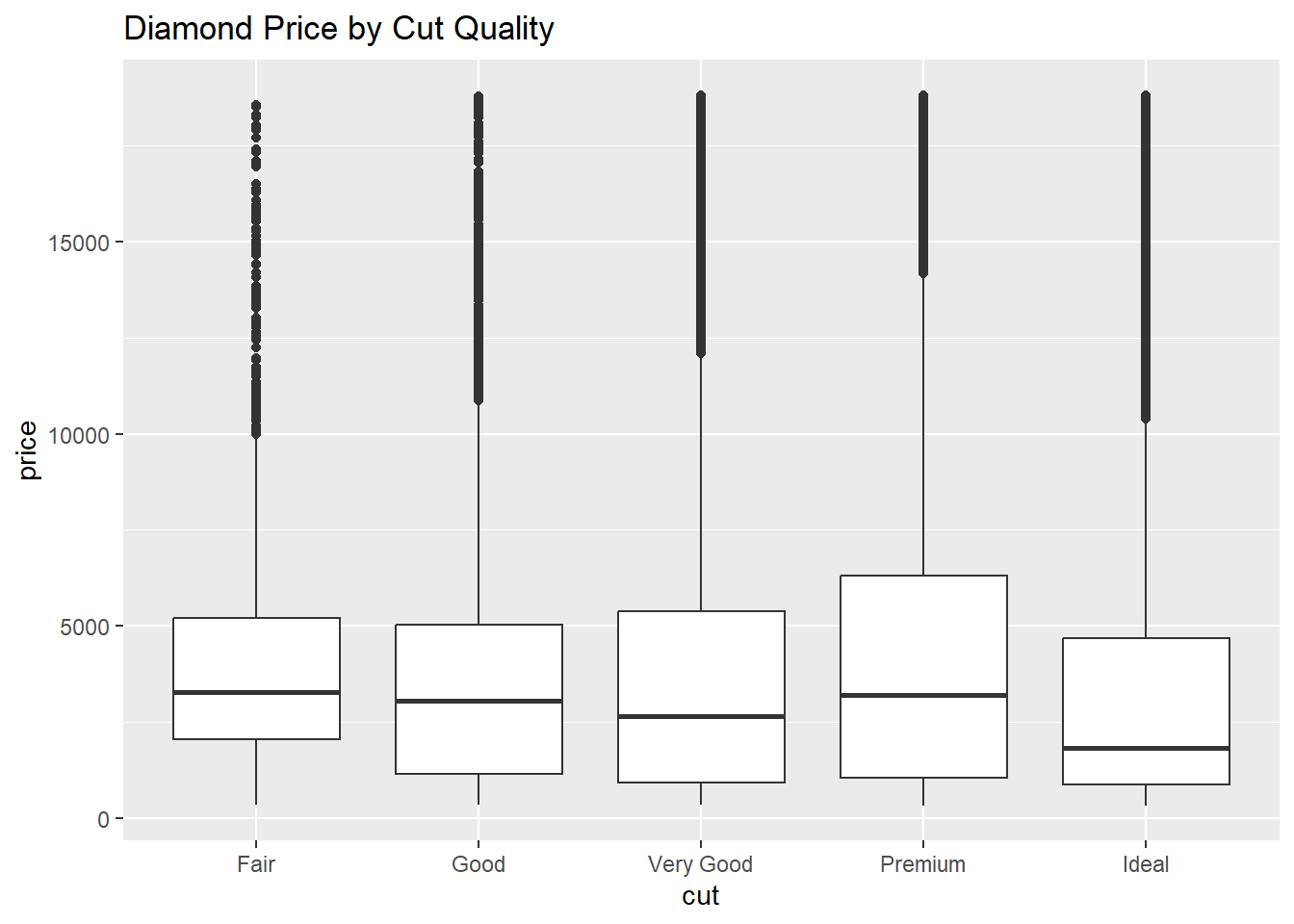

  1. Use R to create a comparative box plot of price (Response Variable on the y-axis) by cut (Explanatory Variable on the x-axis).
    • Which cut category tends to have higher prices?
    • Is this what you would expect?
ggplot(diamonds, aes(x = cut, y = price)) +
  geom_boxplot() +
  labs(title = "Diamond Price by Cut Quality")

  1. Create a simple linear model for price using carat as the Explanatory Variable and price as the Response Variable.
mod1 <- lm(price ~ carat, data = diamonds)
summary(mod1)

Call:
lm(formula = price ~ carat, data = diamonds)

Residuals:
     Min       1Q   Median       3Q      Max
-18585.3   -804.8    -18.9    537.4  12731.7

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) -2256.36      13.06  -172.8   <2e-16 ***
carat        7756.43      14.07   551.4   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1549 on 53938 degrees of freedom
Multiple R-squared:  0.8493,    Adjusted R-squared:  0.8493
F-statistic: 3.041e+05 on 1 and 53938 DF,  p-value: < 2.2e-16
  1. Write out the simple linear regression equation with intercept, coefficients, and variable names.

\[ \widehat{price} = b_0 + b_1(\text{carat}) \]

  1. Interpret the coefficient of carat in the context of this model.
  2. Based on the p-value for the slope, what is the strength of evidence that carat is related to price?

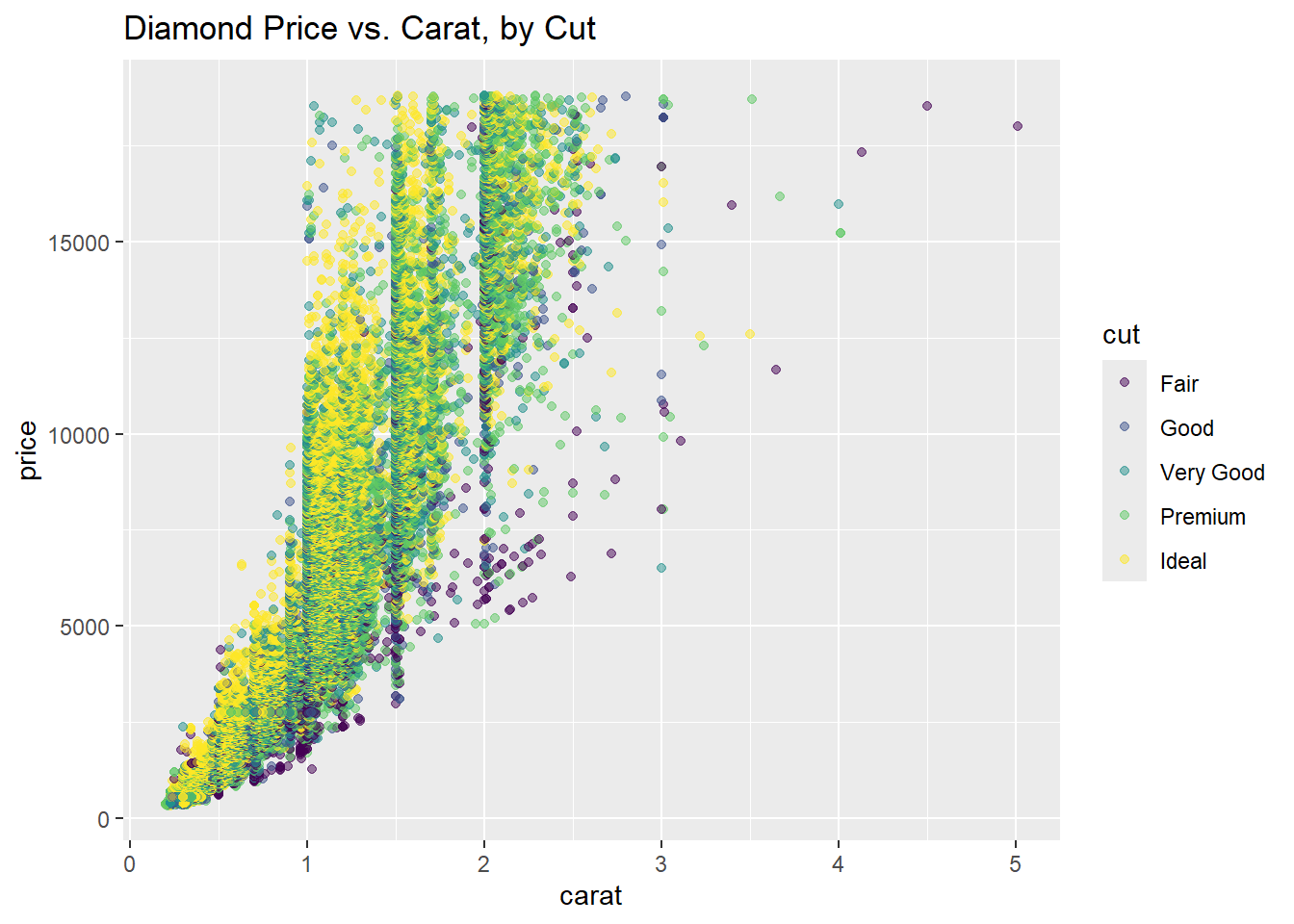

  1. Generate a scatterplot of price (y-axis) versus carat (x-axis), colored by cut.
ggplot(diamonds, aes(x = carat, y = price, color = cut)) +
  geom_point(alpha = 0.5) +
  labs(title = "Diamond Price vs. Carat, by Cut")

  • Do higher-quality cuts tend to cluster at different price or carat ranges?
  • How might this influence your interpretation of the relationship between carat and price?
  1. Fit a multiple regression model for price using both carat and cut as Explanatory Variables.
mod2 <- lm(price ~ carat + cut, data = diamonds)
summary(mod2)

Call:
lm(formula = price ~ carat + cut, data = diamonds)

Residuals:
     Min       1Q   Median       3Q      Max
-17540.7   -791.6    -37.6    522.1  12721.4

Coefficients:
            Estimate Std. Error  t value Pr(>|t|)
(Intercept) -2701.38      15.43 -175.061  < 2e-16 ***
carat        7871.08      13.98  563.040  < 2e-16 ***
cut.L        1239.80      26.10   47.502  < 2e-16 ***
cut.Q        -528.60      23.13  -22.851  < 2e-16 ***
cut.C         367.91      20.21   18.201  < 2e-16 ***
cut^4          74.59      16.24    4.593 4.37e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1511 on 53934 degrees of freedom
Multiple R-squared:  0.8565,    Adjusted R-squared:  0.8565
F-statistic: 6.437e+04 on 5 and 53934 DF,  p-value: < 2.2e-16
  1. Write out the multiple regression equation with intercept, coefficients, and variable names.
  2. Interpret the coefficient for cut while controlling for carat.

  1. How much total variation in diamond price is explained by this model (i.e., (R^2))?

  2. This model assumes that the effect of carat on price is the same across all cuts.

    • How can we check whether this assumption is valid?

  3. Create a multiple regression model for price using both carat and cut, including an interaction between them.

mod3 <- lm(price ~ carat * cut, data = diamonds)
summary(mod3)

Call:
lm(formula = price ~ carat * cut, data = diamonds)

Residuals:
     Min       1Q   Median       3Q      Max
-14878.3   -793.0    -23.0    546.3  12706.2

Coefficients:
            Estimate Std. Error  t value Pr(>|t|)
(Intercept) -2271.95      20.94 -108.513  < 2e-16 ***
carat        7468.05      19.49  383.200  < 2e-16 ***
cut.L        -278.21      57.17   -4.866 1.14e-06 ***
cut.Q         363.22      50.51    7.191 6.50e-13 ***
cut.C        -172.96      42.81   -4.041 5.34e-05 ***
cut^4          67.55      33.40    2.022   0.0431 *
carat:cut.L  1538.10      50.96   30.183  < 2e-16 ***
carat:cut.Q  -781.89      45.89  -17.037  < 2e-16 ***
carat:cut.C   509.65      41.36   12.321  < 2e-16 ***
carat:cut^4    69.70      34.38    2.027   0.0426 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1498 on 53930 degrees of freedom
Multiple R-squared:  0.8591,    Adjusted R-squared:  0.859
F-statistic: 3.653e+04 on 9 and 53930 DF,  p-value: < 2.2e-16

Write out the regression equation with intercept, coefficients, and variable names.

\[ \widehat{price} = b_0 + b_1(\text{carat}) + b_2(\text{cut}) + b_3(\text{carat} \times \text{cut}) \]

  1. Among the Ideal cut diamonds, how much does price increase for a one-unit increase in carat?

  2. Among the Fair cut diamonds, how much does price increase for a one-unit increase in carat?

  3. Is the interaction between carat and cut statistically significant?

    • State your null and alternative hypotheses for the interaction term.
    • Report the test statistic and p-value.

  4. To what population are you willing to generalize your results?

    • Can you draw a cause-and-effect conclusion about carat size and diamond price?
    • Why or why not?

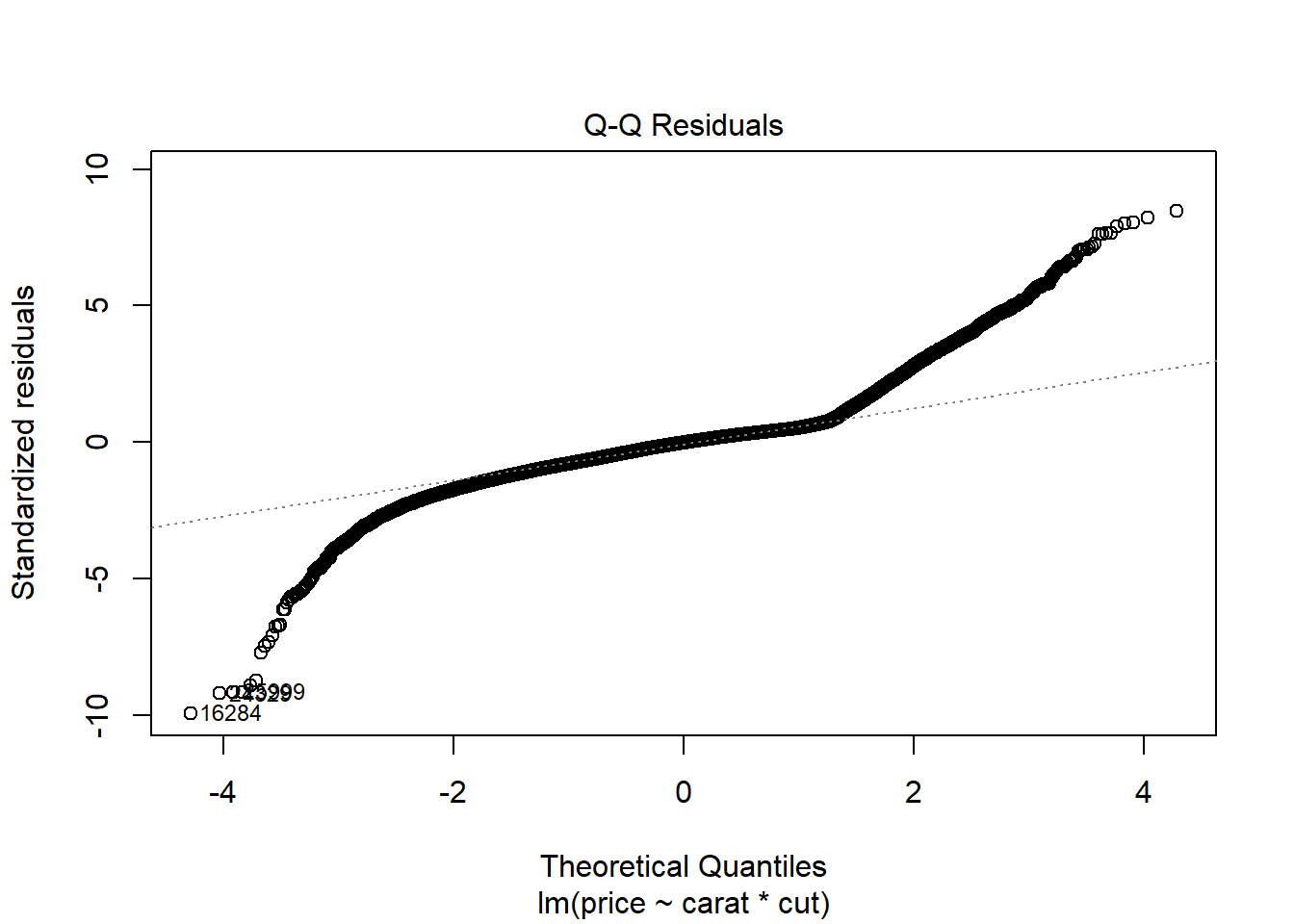

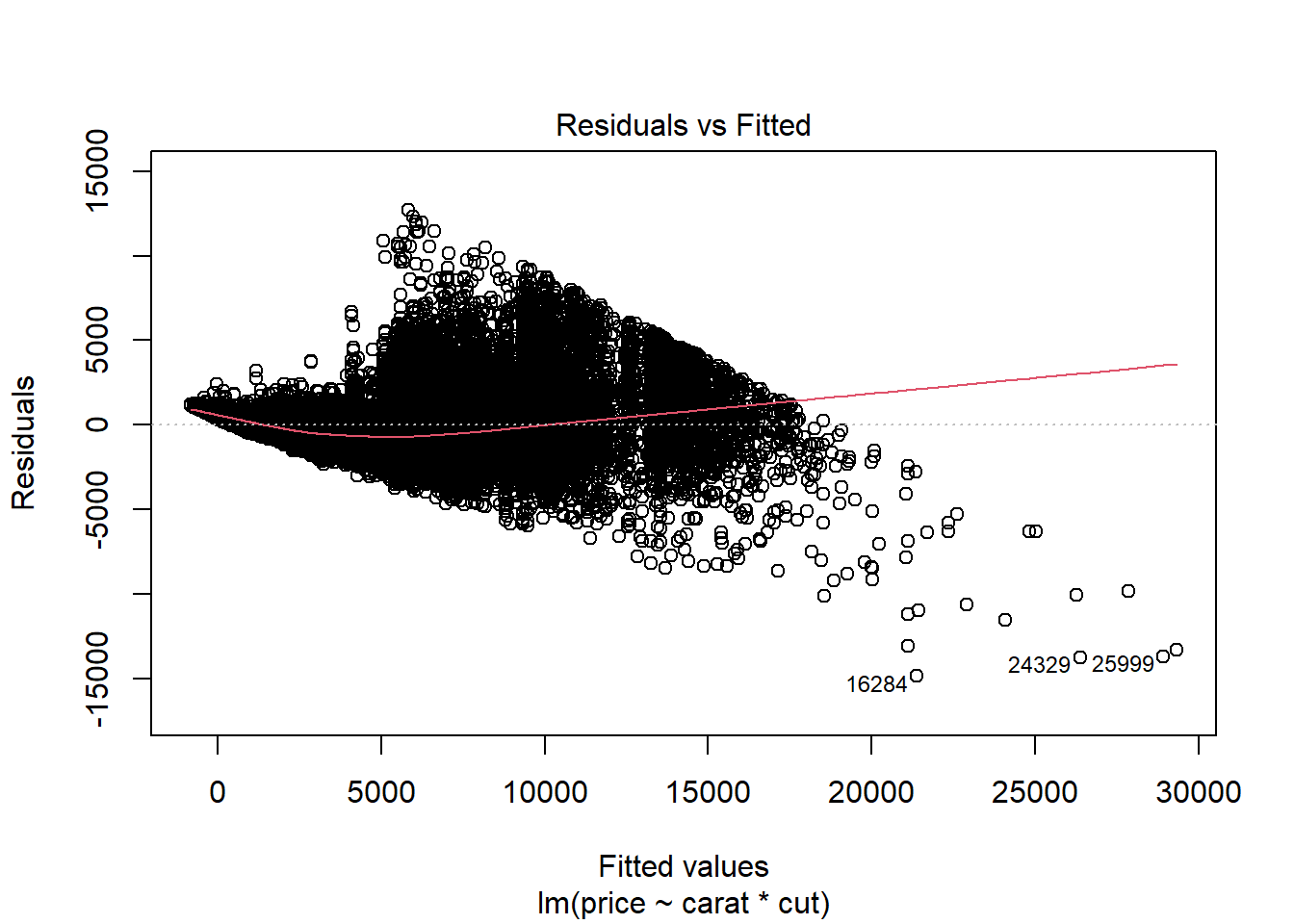

  5. Check each of the four Validity Conditions for the multiple regression you ran in #8.

    • Include all three validity plots for your regression model.
    • Justify each of the four conditions: Linearity, Independence, Normality, and Equal Variance.

Linearity

plot(mod3, which = 1)

Independence

Must be justified based on data collection (not tested statistically).

Normal Distribution

plot(mod3, which = 2)

Equal Variance

plot(mod3, which = 1)

Before you leave

Today:

  • Any questions for me?
